ATTO AC-2110Ⅱ Peristaltic pump
SKU: AC-2110Ⅱ Single

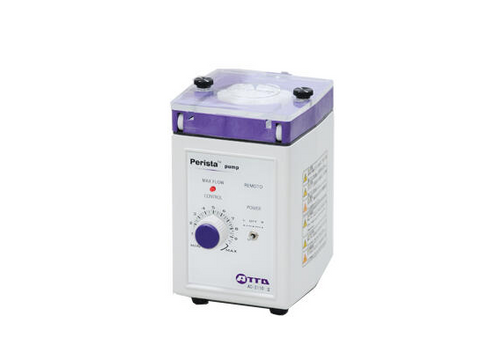

ATTO AC-2110Ⅱ Peristaltic pump
Buy ATTO products from MSE Supplies at the best Value.
AC-2110Ⅱ Peristaltic pump is used for multi-flow and high flow rate type of liquid delivery.
Purpose and Application
- You can select and expand from 1-channel type to 4-channel type.
- 5 to 1500mL/hr per flow path (uses silicone tubes with inner diameter of 1 to 3mm and wall thickness of 1mm).
- With external control terminal (0 to 5V DC)
- It can be used as a pump for chromatography, fermentation culture liquid, and chemical reflux experiments.
-
It can be used for a wide range of purposes, including not only research facilities but also production plants.
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model and name | AC-2110Ⅱ Peristaltic pump |
|---|---|
| Number of channels |
4 types: 1 flow path/2 flow paths/3 flow paths/4 flow paths |
| Amount of liquid delivered |
5 to 1500mL/hr per flow path |
| Flow Accuracy |
Repeatability within ±1% |
| Flow rate variable range |
1 to 45 times |
| pressure |
Maximum discharge pressure 205.9kPa (2.1kg/cm2) Maximum suction pressure 9.8kPa (0.1kg/cm2) |
| Head/Compatible Viscosity |
21m maximum / 1.5Pa･s(1500cP) maximum |
| Motor |
DC Motor |
| Drive circuit |
DC servo system |
| Ambient temperature |
0 to 40°C |
| External Control Terminal |
0 to 5VDC, FLOW, STOP |
| MAXFLOW |
With switch |
| Power supply and power consumption |
AC100-240V 50/60Hz ・ 12VA (1.3VA/flow path) |
| Dimensions(mm) |
For 1-channel type: 110 (W) x 150 (D) x 235 (H) |
| Weight(Kg) |
1.5 (0.25kg/channel) |
