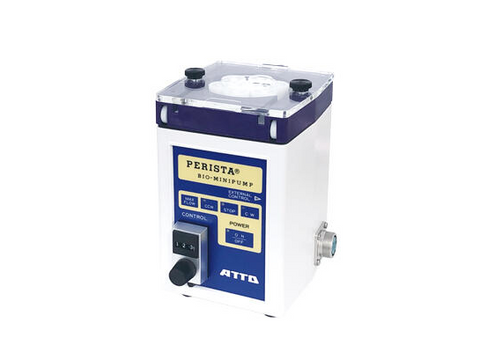

ATTO AC-2120 Peristaltic Bio Mini Pump
SKU: AC-2120 110V
ATTO AC-2120 Peristaltic Bio Mini Pump
Buy ATTO products from MSE Supplies at the best Value.
AC-2120 Peristaltic Bio Mini Pump is a single channel pump for liquid delivery.
Purpose and Application
- Controls flow rate from 1 to 1000 times using the same diameter tube.
- Flow rate: 0.1 to 1000mL/h (using tubes with inner diameter of 1 to 3mm and wall thickness of 1mm).
- Easy-to-read operation panel with illuminated panel switches. Accurately set flow rate using the digital dial.
- Equipped with an external control terminal, it is compatible with the preparation of (compound) gradient solutions, etc.
- Equipped with a MAX/FLOW switch for quick solution exchange.
- It can be used as a pump for chromatography, fermentation culture liquid, and chemical reflux experiments.
-
It can be used for a wide range of purposes, including not only research facilities but also production plants.
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model and name | AC-2120 Peristaltic Bio Mini Pump (High-precision, wide-flow type) | |
|---|---|---|
| Number of channels |
1 flow path |
|
| Amount of liquid delivered |
0.1 to 1000mL/h (using tubes with inner diameters of φ1 to φ3) |
|
| Same diameter tube flow rate variable range |
1 to 1,000 times |
|
| Flow Accuracy |
Repeatability within ±0.2% |
|
| Maximum (discharge/suction) pressure |
Maximum discharge pressure: 205.9kPa (2.1kg/cm2 ) Maximum suction pressure: 9.8kPa (0.1kg/ cm2 ) |
|
| Head/Compatible Viscosity |
21m maximum / 1.5Pa･s(1500cP) maximum |
|
| Ambient temperature |
0 to 40°C |
|
| Motor |
AC Induction Motor |
|
| Drive circuit |
Encoder-based FV conversion method |
|
| External Control Terminal |
Flow rate setting input: 0 to 5VDC, CW, CCW, STOP, Control input: TTL level |
|
| Maximum Rotation |
MAX FLOW switch |
|
| Dimensions(mm) |
110(W)×150(D)×180(H) |
|
| Weight(Kg) |
2.2 |
|
