AZ Instrument Temp. & RH Anemometer
SKU: 8905
AZ Instrument Temp. & RH Anemometer
MSE Supplies is an authorized distributor of AZ Instrument Corp.
Applications:

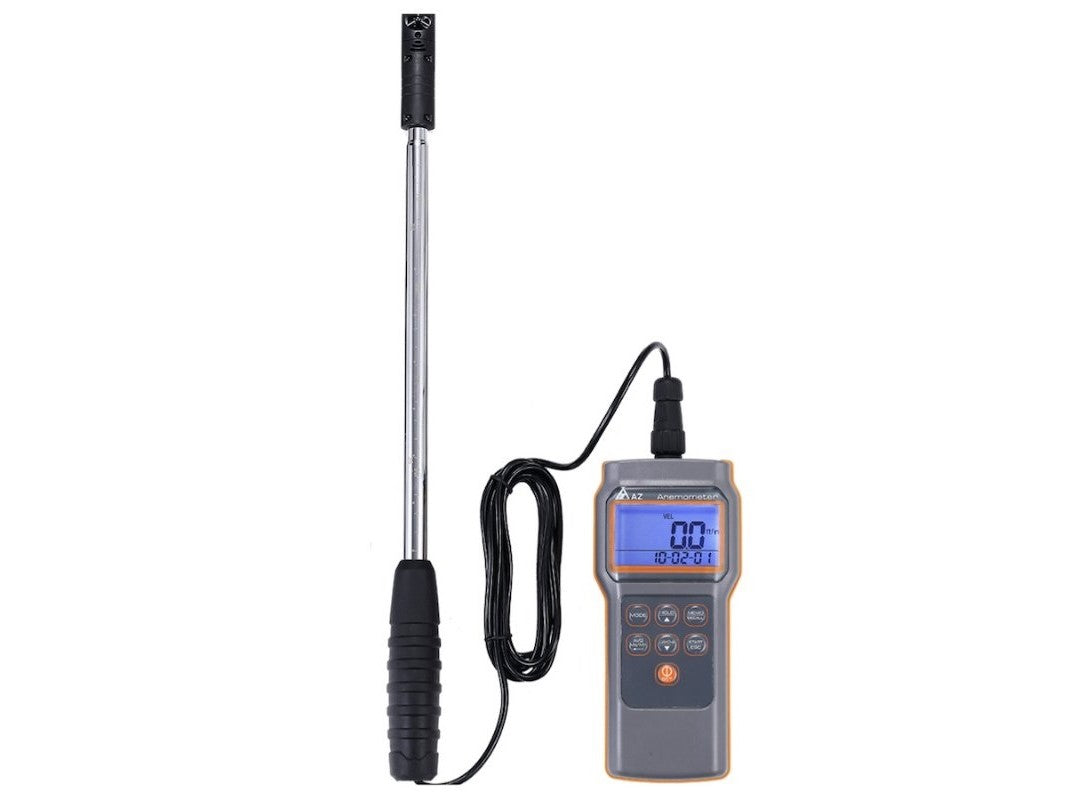

The portable 8905 AZ Wind Meter Anemometer can measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity, dew point and wet bulb temperature, which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related application.
The temperature and humidity sensors of 8905 AZ Thermal Anemometer are built in the external 18 mm mini, which could measure the low speed/velocity wind with high accuracy. The 8905 Hygrometer Anemometer has the 1055 mm extended van probe, which can insert to the high duct easily. The compact mini impeller is ideally designed for duct airflow. Duct temperature has no influence on airflow wind measurement.
Specifications:
Model | 8905 |
Wind Speed Range | 0.5~20 m/s |
Wind Speed Accuracy | ±(3% of reading+0.2 m/s) |
Air Temperature Range | -20~60℃ |
Air Temperature Resolution | 0.1℃, 0.1℉ |
Air Temperature Accuracy | ±0.6℃ |
Air RH% Range | 0.1%~99.9%RH |
Air RH% Resolution | 0.1%RH |
Air RH% Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
Temperature Response Time | 60 seconds (typical) |
Air RH% Response Time | 60 seconds (typical) |
LCD Update | Every second |
Wet Bulb Temp. Display | -20~59.9℃ |
Dew Point Temp. Display | -20~59.9℃ |
Air Volume Display | 0~99999 m3/minute |
Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
LCD Size | 54(L) * 32.5(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -10~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 169(L) * 78.3(W)* 34.4(H) mm |
Weight | ~200g |
Battery | AAA*6 PCS or 9V DC Adaptor |
Optional Accessory | Replacement Vane Probe |
Standard Package | Meter, Wind Probe, Batteries, Manual, Software Kit, Hard Carry Case |
