BASi 1mm Thin Layer Quartz Glass Spectroelectrochemical Cell Kit with Gold Working Electrode

BASi 1mm Thin Layer Quartz Glass Spectroelectrochemical Cell Kit with Gold Working Electrode

Buy BASi Products from MSE Supplies at the best value.

Spectroelectrochemistry couples the ability of an electrochemical experiment to change the oxidation state of a solution species with the structural and quantitative capabilities of spectroscopy. This cell is the combination of a thin-layer electrochemical vessel and a quartz cuvette (two path lengths are available, 1 mm and 0.5 mm) designed to be used in a standard UV-VIS spectrometer.

• Monitor in real time the chromic changes associated with a reduction/oxidation reaction including reactant, intermediate(s) and/or final product(s) by spectroscopic means.
• Platinum and Gold mini-grid electrodes are available.
• Uses standard BASi® reference electrode (purchased separately)

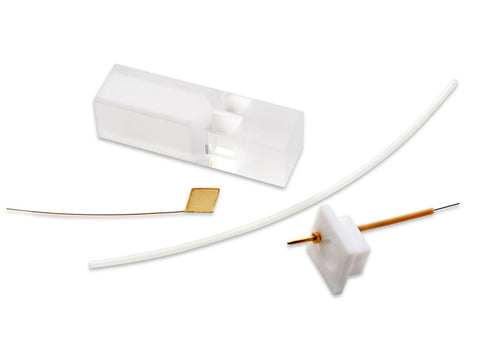

Kit includes:

• Thin-layer quartz cuvette
• Platinum or gold minigrid working electrode
• Platinum wire auxiliary electrode
• Teflon cap
• Chemically inert plastic purge tube

Includes:

• EF-1357 SEC-C Au gauze working electrode, 1 mm cell

• EF-1356 SEC-C Pt counter electrode, 1 mm cell

• EF-1358 SEC-C thin layer quartz glass cell

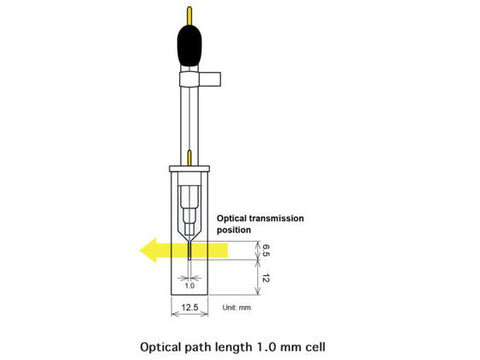

• Lightpath length: 1 mm

• EF-1359 SEC-C Teflon cap

• EF-1360 Purging tube

For UK customers, please contact us before placing an order.

MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
