BASi SEC-C - 0.5 mm Thin Layer Quartz Glass Cell Kit (Au)

BASi SEC-C - 0.5 mm Thin Layer Quartz Glass Cell Kit (Au)

Buy BASi Products from MSE Supplies at the best value.

Spectroelectrochemistry couples the ability of an electrochemical experiment to change the oxidation state of a solution species with the structural and quantitative capabilities of spectroscopy. This cell is the combination of a thin-layer electrochemical vessel and a quartz cuvette (two path lengths are available, 1 mm and 0.5 mm) designed to be used in a standard UV-VIS spectrometer.

• Monitor in real time the chromic changes associated with a reduction/oxidation reaction including reactant, intermediate(s) and/or final product(s) by spectroscopic means.
• Platinum and Gold mini-grid electrodes are available.
• Uses standard BASi® reference electrode (purchased separately)
• Kit includes

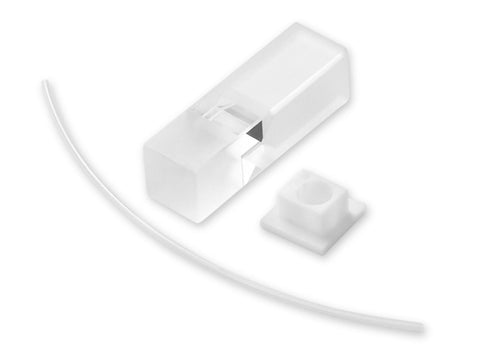

  Thin-layer quartz cuvette
  Platinum or gold minigrid working electrode
  Platinum wire auxiliary electrode
  Teflon cap
  Chemically inert plastic purge tube

• Additional electrodes not included:
  MF-2052- RE-5B Ag/AgCl Reference Electrode (1 each)
  MW-2030 - RE-6 Ag/AgCl Reference Electrode (3/pkg)
  MF-2062 – Ag/Ag+ Non-Aqueous Reference Electrode

Includes:
EF-1366 SEC-C Gold (Au) Gauze Working Electrode, 0.5 mm cell
EF-1361 SEC-C Platinum (Pt) counter electrode, 0.5 mm cell

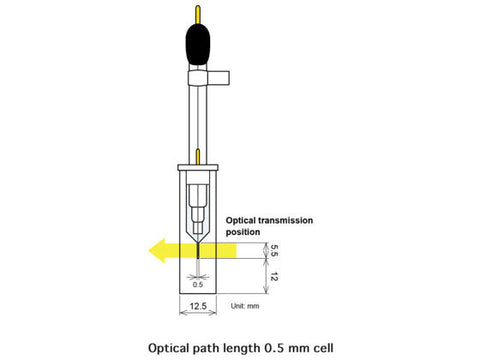

EF-1364 SEC-C Thin Layer Quartz Glass cell. Light pathlength: 0.5 mm
EF-1359 SEC-C Teflon Cap
EF-1360 Purging Tube

For UK customers, please contact us before placing an order.

MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
