BASi Thin Film Interdigitated electrode – Gold (50/PK)

BASi Thin Film Interdigitated electrode – Gold (50/PK)

Buy BASi Products from MSE Supplies at the best value.

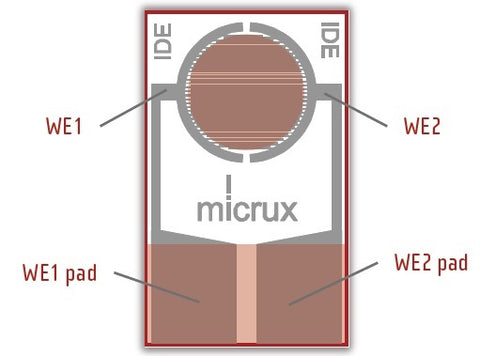

Thin-film technologies enable the fabrication of microelectrodes (<25 µm) with high resolution and precision. The most basic interdigitated electrodes (IDE) consist of two individually addressable microelectrode array strips with an interdigitated approach. These lineal-band electrodes have been specially designed in a circular cell to work with very small sample drops (< 10 µL). The sample drop shape is well-adapted to the electrode cell to get the maximum performance and precision. The interdigitated electrodes (IDE) provide a suitable tool especially useful for impedance, capacitance, and conductivity measurements as well as fuel cells. Different interdigitated electrode (IDE) designs are available in platinum or gold.

Width – 5 µm
Gap - 5 µm
No of feet – 180

For UK customers, please contact us before placing an order.

MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
