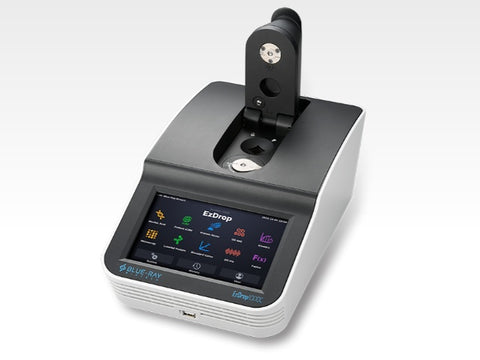

Blue-Ray EzDrop 1000C Micro-Volume / Cuvette Spectrophotometer
SKU: BRED-1000C-1
Blue-Ray EzDrop 1000 Micro-Volume Spectrophotometer
Buy Blue-Ray products from MSE Supplies at the best value.
The EzDrop 1000C Micro-Volume / Cuvette Spectrophotometer maximizes both your sample usage and efficiency, delivering results in just 3 seconds. With dual modes for micro-volume and cuvette detection, it accommodates a broad range of nucleic acid and protein quantification needs. Featuring an intuitive 7” touchscreen for easy navigation, the EzDrop 1000C can function as a standalone unit or be connected to a PC, offering flexibility for seamless data processing.
-
Rapid Quantification: Obtain results in 3 seconds using the adjustable pathlength selector for quick and accurate measurements.
- Micro-Volume Mode: Requires just 1 μL of undiluted sample. The sample window is coated with a Nano hydrophobic layer to stabilize the liquid column, and the cushioned detection arm protects against shock or impact during use.

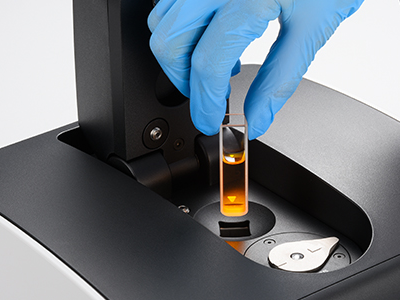

- Cuvette Mode: Features built-in 37–45°C temperature control and stirring functions for specific applications, allowing for a broader range of experimental needs.
-
Wide Wavelength Range: Covers a full spectrum from 190 to 1000 nm, supporting various research applications.
-
Intuitive Operation: The 7” touchscreen allows easy access to multiple sample types and functions with a simple tap, streamlining your workflow.
-
Assist Light for Precision: An integrated assist light ensures accurate sample placement, reducing errors caused by poor ambient lighting.
-
Flexible Data Management: Operate the device as a standalone unit or connect to a PC for easy report generation and data analysis.
MSE Supplies offers a variety of Spectrophotometers. Please contact us for more information.
Specifications:
| Minimum Sample Volume | 1 µL |
| Pathlength | 0.5 mm / 0.05 mm |
| Light Source | Xenon flash lamp |
| Detector Type | 2048 element CMOS |
| Wavelength Range | 190 - 1000 nm |
| Wavelength Accuracy | +/- 1.0 nm |
| Spectral Resolution | 1.5 nm (FWHM at Hg 253.7 nm) |
| Absorbance Precision | Raw: 0.0015 A (0.5 mm); 0.03 A (1 cm equivalent) |
| Absorbance Range (1 cm equivalent) | 0.04 - 400 A |
| Absorbance Accuracy | 1.5% at 1.0 A at 300 nm |
| Detection Range | dsDNA: 2 - 20000 ng/µL; BSA: 0.06- 600 mg/mL |
| Measurement Time | < 3 seconds |
| Cuvette Mode Pathlength | 10, 5, 2, 1, 0.5, 0.2, 0.125, 0.1 m |
| Cuvette Mode Absorbance Range (1 cm equivalent) | 0.002 - 1.5 A |
| Cuvette Mode Detection Range | dsDNA: 0.3 - 75 ng/µL; BSA: 0.003 - 2.25 mg/mL |
| Cuvette Mode Stirring | 8 Speeds (150 - 850 rpm) |
| Cuvette Mode Temperature Control | 37 - 45℃ ±0.5℃ (Quartz Cuvette) |
| Operating System | Custom Linux based OS |
| PC Software Requirement | Windows® 7, 10 and 11, 64 bit |
| Display | 7” touch screen, 1280*800 high-definition color display |
| Connectivity | USB-A port x1 (Data output); USB-B port x1 (PC connection) |
| Footprint Dimensions (W x D x H) | 206 x 333 x 166 mm (8.1 x 13.1 x 6.5 In.) |
| Weight | 3.3 kg (7.3 lbs.) |
| Glove Compatibility | All common lab gloves |
| Internal Storage | 32 GB flash memory |
| Operating Voltage | Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A |
| Certifications | CE |
