Blue-Ray TurboQ 96-Well Real-Time PCR System
SKU: TCRT-9614

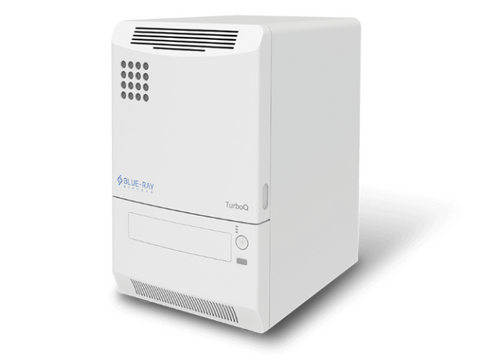

Blue-Ray TurboQ 96-Well Real-Time PCR System
Buy Blue-Ray products from MSE Supplies at the best value.
TurboQ Real-Time PCR system is designed for multiplex and routine PCR applications with up to 4 targets. Inheriting the proven PCR instrument core competency from Blue-Ray Biotech, TurboQ brings versatile features to help lab researchers in performing diagnostic testing and researches.
- 4 Optical Channels: Detects up to 4 targets in one well.
- CCD-Based Detection System: Entire plate detection at once, eliminating reaction-time differences.
- Motorized Plate Carrier Tray: Plate in/out with a simple click, enabling future automation integration.
- ±0.25°C Block Temperature Control Accuracy: Ensures experiment condition stability and eliminates uncertainty.
- Software with Complete Analysis Functions: Includes Absolute Quantitation, Relative Quantitation, Allelic Discrimination, and Melting Curve. No additional analysis modules required.
MSE Supplies offers a variety of Blue-Ray Products. Please contact us for more information.
Specifications:
| SKU# | TCRT-9614 |
| Overview | Ideal for Multiplex and Routine PCR Applications |
| Sample Block |
Fixed 96-well, compatible with regular profile 0.2 ml PCR tube, strip, and semi-skirted 96-well plate |
| Sample Volume | 10 - 100 µl |
| Plate Loading | Motorized plate carrier tray |
| Block Temperature Range | 25 - 99 °C |
| Peak Block Ramp Rate | 2.5 °C/sec |
| Temperature Accuracy | ± 0.25 °C (35 °C – 95 °C) of set point/ display temperature / Measured at 3 minutes after clock start. |
| Temperature Uniformity Across Block | ± 0.5 °C (30 seconds after clock start) |
| Gradient Temperature Range | 60-99 °C |
| Gradient Temperature Difference | Max. span 25 °C |
| Heated Lid | 105 °C |
| Excitation Source | Tungsten-halogen lamp |
| Detection Module | CCD camera |
| Detection Channel | 4 channels (Ch1: FAM, SYBR Green, Ch2: HEX, VIC, JOE, Ch3: ROX, Texas Red, Ch4:Cy5) |
| Operating Temperature | 15 – 30 °C |
| Operating Humidity | RH: 85% or less |
| Storage Temperature | -10 - 60 °C |
| PC Operation System | Windows 7 or higher |
| Footprint Dimensions (H x W x D) | 567 mm x 354 mm x 455 mm |
| Weight | 35 kg |
