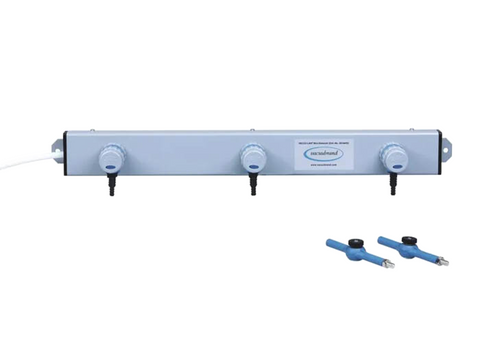

VACUU·LAN® Mini-Network with three modules VCL01 fully assembled

The VACUU·LAN® Mini-Network is a plug and play, three-fold vacuum network that can be attached to a wall or lab frame. Use vacuum tubing to connect the Mini-Network to a new VACUUBRAND diaphragm vacuum pump, or any existing diaphragm vacuum pump to support three applications simultaneously. Specialized VACUU·LAN®ports minimize interference between applications. Each VACUU·LAN® Mini-Network includes manual flow control valves for continuous suction power adjustment. Shut-off valves and electronical control are optionally available.

• three VACUU·LAN® ports in a snap
• space saving assembly for the attachment to the wall or your lab frame
• connect the vacuum pump with vacuum tubing and you are ready to go!
• easy to upgrade to other manual or electronic VACUU·LAN® ports at any time
• higher flow-rate pumps can support two VACUU·LAN® Mini-Networks at once
