BrandTech FO R 2/2.5/5/6 Oil Mist Filter Outlet Side
SKU: BT20698003
BrandTech FO R 2/2.5/5/6 Oil Mist Filter Outlet Side
Buy BrandTech Products from MSE Supplies at the best value.
Oil mist filter outlet side in action

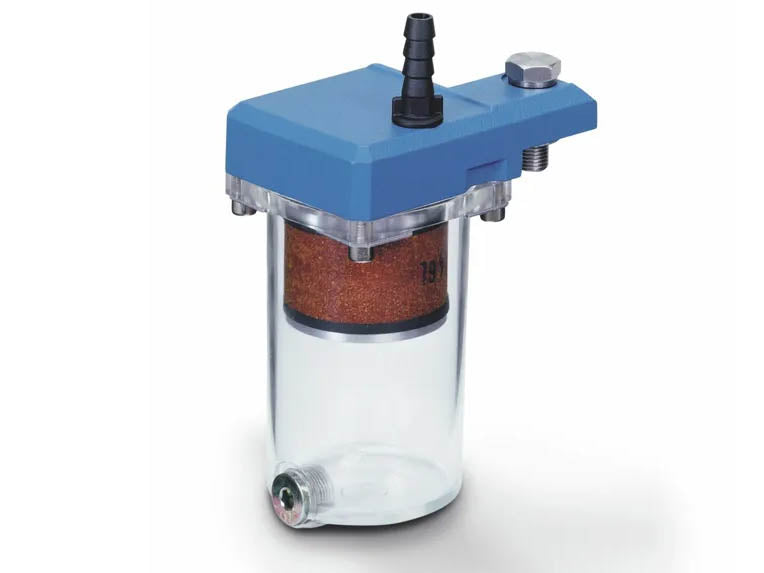

Oil mist filter FO R 2 / 2.5 / 5 / 6
Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters separate nearly 100% of oil mist at the ultimate vacuum of the pump. In case of reduced lifetime of the filter element due to solvents in the oil we recommend filter elements made of ceramics (on request).
- very high degree of separation
- optimal control by transparent catchpot
- easy draining of oil
- direct mounting on the oil reservoir outlet
- integrated pressure relief valve for burst protection in case of blocked filter
Technical data and graphs
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| Dimension L in mm | 119 mm |
| Dimension B in mm | 80 mm |
| Dimension H in mm | 181 mm |
| Outlet connection | directly mountable |
| Inlet connection | Hose nozzle DN 10 mm |
| For VACUUBRAND pumps | RE 2, RZ 2, RE 2.5, RZ 2.5, RE 5, RZ 5, RE 6, RZ 6 |
| Permissible volume flow rate | 6 m3/h |
| Volume catchpot | 180 ml |
