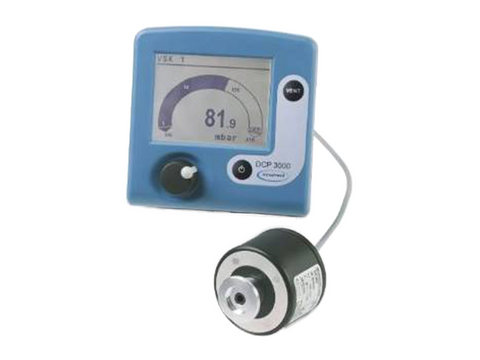

BrandTech Set DCP 3000 + VSK 3000 Vacuum Gauge

The fully electronic vacuum measuring device DCP 3000 is both versatile and decisive with its mechanical robustness, measuring accuracy and reliability. The large, illuminated display provides the measured value display of all connected sensors via an easy-to-use rotary control. Up to eight vacuum sensors (four of each type VSK 3000 / VACUU·VIEW and VSP 3000 / VACUU·VIEW extended) can be connected to the DCP 3000. The measurement can be carried out directly on the application. The DCP 3000 enables a relative pressure measurement (reference sensor VSK 3000) as well as working with pressure-dependent switching points by specifying switch-on and switch-off points on an external valve. The vacuum measuring device can also be used as a data logger with up to 32,000 measuring points. The data is read out via the serial interface (RS 232C). The ceramic membrane vacuum sensor VSK 3000 is suitable for the measuring range from atmospheric pressure to 0.1 mbar. It measures regardless of the gas type and is highly chemically resistant, which means that the measurement can be carried out directly at the process, with excellent measurement accuracy and high long-term and temperature stability. Please also note our alternative product VACUU·VIEW.

• vacuum measuring device for connecting external vacuum sensors for measurements directly on the system
• flexible and expandable with up to eight sensors, four of the types VSK 3000 / VACUU·VIEW (Atm. to 0.1 mbar) and VSP 3000 / VACUU·VIEW extended (Atm. up to 10^-3 mbar)
• relative pressure measurement with reference sensors (VSK 3000) and data logger function with up to 32000 measuring points (RS 232C)
• capacitive ceramic diaphragm vacuum sensor VSK 3000 made of aluminum oxide with high chemical resistance, gas type independent absolute pressure measurement
• excellent measurement accuracy, temperature and long-term stability
