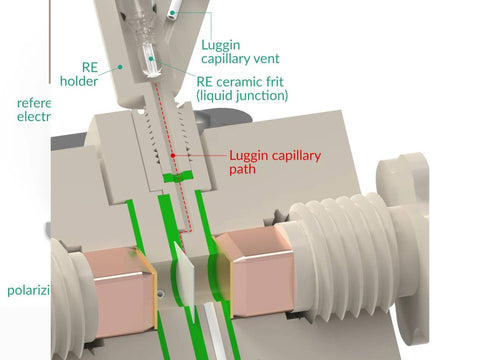

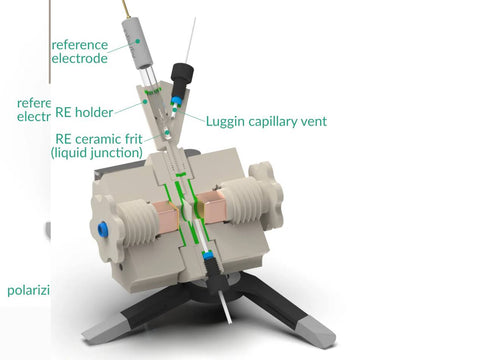

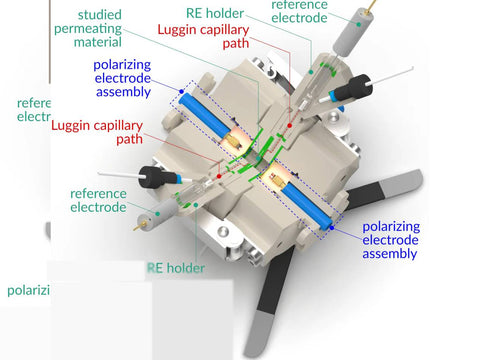

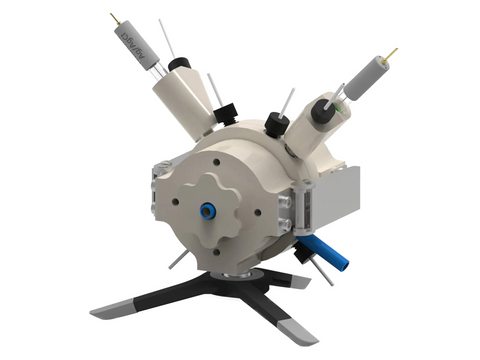

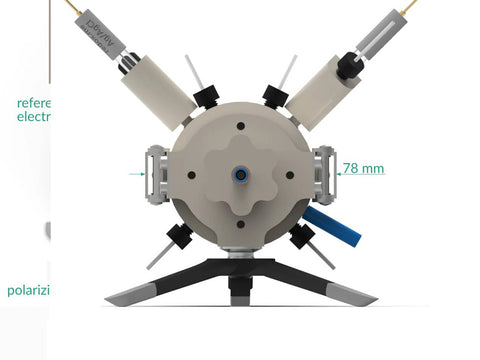

The Devanathan-Stachurski Permeation Cell is an electrochemical double-compartment, four-electrode setup. It is typically used to investigate hydrogen permeation in steels and other alloys (diffusion constants of hydrogen in materials, density of trap sites and trap energies) as well as to evaluate ion-exchange membranes (gas diffusion coefficient/crossover, gas solubility and gas permeability typically of H₂, O₂, CO and H₂S). Moreover, this cell can also be used with Impedance Spectroscopy to measure ionic conductivity of membrane in 2- and 4-probe setup. In the former case, a current is applied between polarizing electrodes while potential is measured across separate reference electrodes. The measurement is therefore agnostic to any side reactions occurring at the polarizing electrodes. Luggin capillaries that make an ionic connection between permeated material and reference electrode, minimize the contribution from the ohmic drop in an aqueous electrolyte. Those Luggin capillaries are located closely to the studied permeable material and outside of the current path between polarizing electrodes. The cell elements are constructed with materials that are inert to the sample (PEEK and other fluorinated plastics). It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas tight.

Application Note:

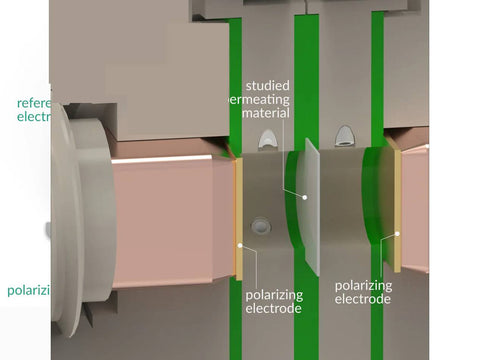

For measurements of permeation through the electronically conductive material such as metal foil, both sides of the sample form the working electrodes in two separate electrochemical cells/compartments (common WE). In this case, the studied permeated material should be electronically connected to the WE contact using a stripe of a thin metal foil (not included). In one compartment the sample is potentiostatically or galvanostatically charged with hydrogen. This chamber is typically connected with an external reservoir and the electrolyte circulates in a loop. In the other compartment, the other side of the permeated material is polarized anodically so that the permeating hydrogen is fully oxidized. The measured anodic current provides direct information about hydrogen permeation.
This cell can also be used to measure the performance of ion-exchange membrane in electrochemical processes such as fuel cells, redox flow batteries, or reverse electrodialysis. In this case, the cell is used to measure membrane selectivity and conductivity, which together determine energy efficiency. When studying ion-exchange membranes, the sample is not electronically connected.

Various polarizing electrodes materials are suitable for this cell including noble metal plates, Glassy Carbon plates and Boron-Doped Diamond plates.

The Devanathan-Stachurski Permeation Cell, model A is compliant with ISO 17081:2014 norm.

Specification:

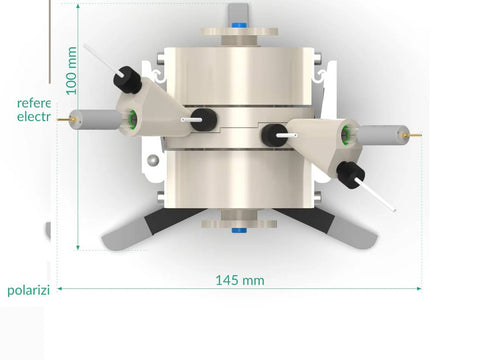

Distance between polarizing electrodes: 12 mm
Electrolyte volume needed: 2 x 0.35 mL
Polarizing electrode size: 10 mm x 10 mm
Polarizing electrode maximum thickness: 4 mm
Chamber internal diameter: 8 mm
Distance between Luggin capillaries: 2 mm
Polarizing electrode geometrical surface area: 50.25 mm²
Sample surface area exposed to an electrolyte: 2 x 50.25 mm²

Product Includes

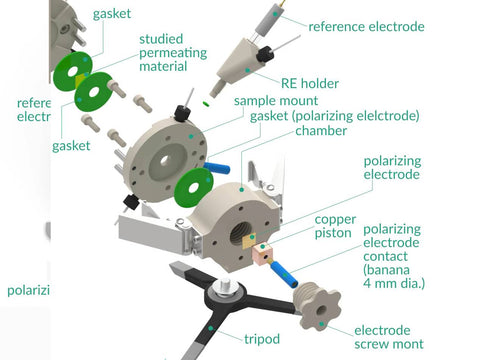

2 x chamber
2 x sample mount
2 x electrode screw mount

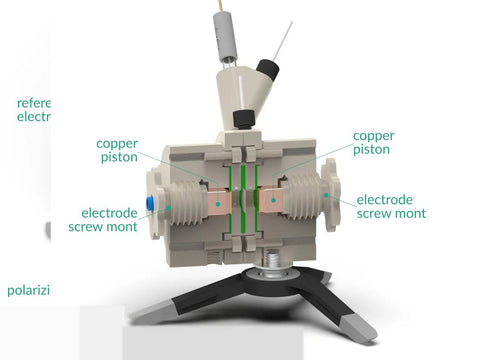

2 x copper piston

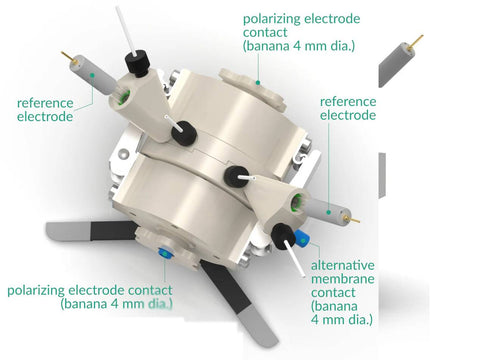

3 x banana 4 mm dia. plugs
2 x RE holders
1 x set of O-Rings
1 x set of gaskets
1 set of PEEK screws
1 x tripod
