Front Contact Photo-Electrochemical H-Cell

Front Contact Photo-Electrochemical H-Cell

Buy Redox.me products from MSE Supplies at the best value.

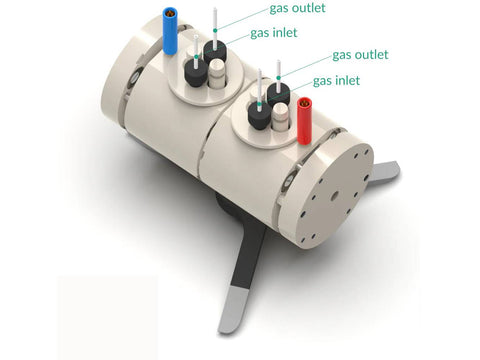

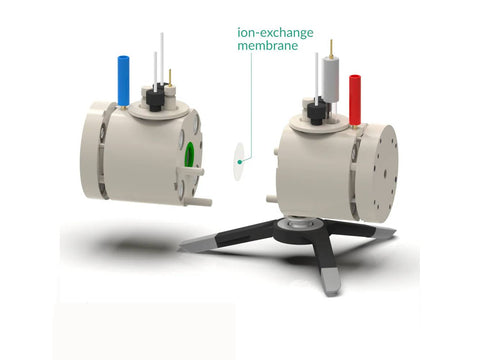

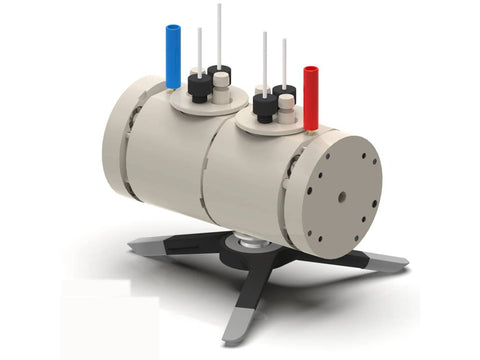

This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to simultaneously or individually investigate thin film photo-anode and photo-cathode. The cell elements are made of PEEK and Fluoropolymers. It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at photo-anode and (photo-)cathode do not affect the opposite electrode.

Application Note:

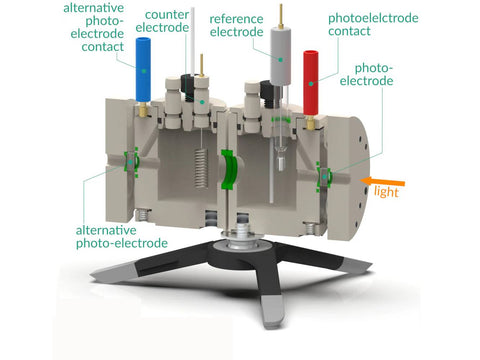

This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of a thin film photo-anode or photo-cathode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The counter electrode is mounted in the second chamber either in a top casing or attached on the side of the cell as a thin film deposited on rigid or flexible substrate. The reference electrode is mounted in a top casing of the same chamber as the studied photo-electrode. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes and thin films. Typical applications include: basic photochemistry (photo-catalysis), photolytic water splitting, photoinduced charge separation and photo-corrosion.

Specification:

Minimum electrolyte volume: 2x10 mL
Maximum electrolyte volume: 2x15 mL
Electrode plug diameter: 6 mm
Maximum substrate thickness: 3 mm

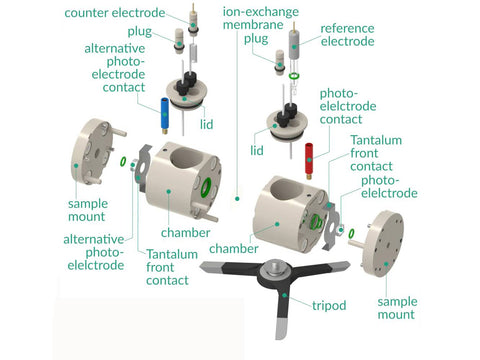

Product Includes

2 x lid – 0001CPEMA
2 x chamber
2 x sample mount
2 x Tantalum contacts
1 x micro tripod
4 x plug
1 x set of O-Rings (18 pcs)

Setup Includes:

mm Fc Pec H-Cell 2 X 15 ml, 11.3 mm Dia. - Magnetic Mount Front Contact Photo-Electrochemical H-Cell 2 X 15 ml, 11.3 mm Dia, mm Fc Pec H-Cell 2 X 15 ml, 5 mm Dia. - Magnetic Mount Front Contact Photo-Electrochemical H-Cell 2X15 ml, 5 mm Dia.
Metal Wire Auxiliary Electrode - 50Hx15 0.6/250 mm, Platinum (99,9%), 1 mm Dia. Gold Plated Pin
Silver / Silver Chloride Reference Electrode - AG/AGCL 30 mm, Non-Aqueous - AG/AG+ 30 mm
