Gaskatel Electrochemical Test Cell Ready to Use FlexCell-PP - MSE Supplies LLC

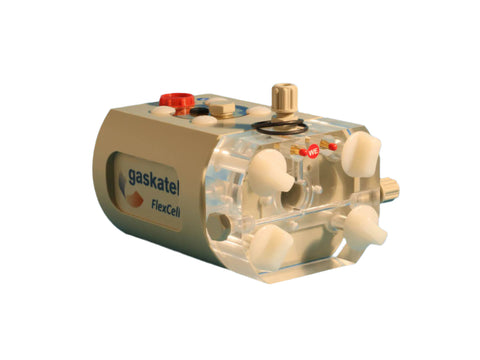

Gaskatel Electrochemical Test Cell Ready to Use FlexCell-PP

SKU: 83200

  • $ 2,85595
  • Save $ 23100

Request a Quote

Gaskatel Electrochemical Test Cell Ready to Use FlexCell-PP

Buy Gaskatel electrochemistry Products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of Gaskatel GmbH.

        Test cell FlexCell-PP – electrochemical test cell PP, ready for use

        Voltammetric cell especially for gas diffusion electrodes, corrosion measurement and battery electrodes.

        SKU: 83200

        Applicable from pH -2 to pH 16
        Material Counter Electrode Compartment: Polypropylene (PP)

        Material Working Electrode Holder: Polymethyl methacrylate (PMMA)
        Electrolyte volume: 30 ml
        Sample size: 3 cm x 5 cm2
        Active area: 3 cm2
        Counter electrode: PtIr (83008)
        Heating element: 80 W (83012)
        Temperature: max. 80 °C

        This test cell works for all flat materials!

        Measurement error sources like IR drop, curvature of field lines or boundary effects caused by the sealing are minimized.
        Haber-Luggin-capillary drilled on the side with fixed distance to the working electrode.

        Gas supply of the working electrode: therefore well applicable for gas diffusion electrodes.
        Auxiliary analyte compartment for tests with separated anolyte and catholyte. Provides the possibility of tests with membrane or separator.

        Package:

        • 1 x Test cell FlexCell PP
        • 1 x Test lead 2/4 mm 0.5 mm2 black (89013)
        • 2 x Test lead 4/4 mm 1 mm2 red (89017)
        • 4 x Connecting coupling adaptor 4/4 mm red (89037)
        • 1 x Connecting coupling adaptor 4/4 mm black (89038)
        • 1 x Reducing nipple PP for Mini-HydroFlex (80017)
        • 1 x Hexagon socket spanner 6 x125 mm 6okt. (83011)
        • 1 x Manual

          MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.

          Please note consumable products are non refundable or eligible for return. Quality issues or concerns must be reported within 1 week of delivery.
