Heidolph Hei-PLATE Mix 'n' Heat Core (135)
SKU: 036110203
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
Heidolph Hei-PLATE Mix 'n' Heat Core (135 mm)

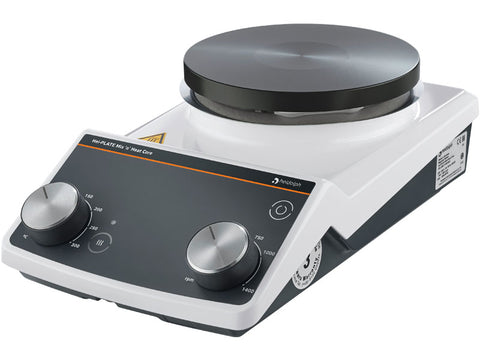

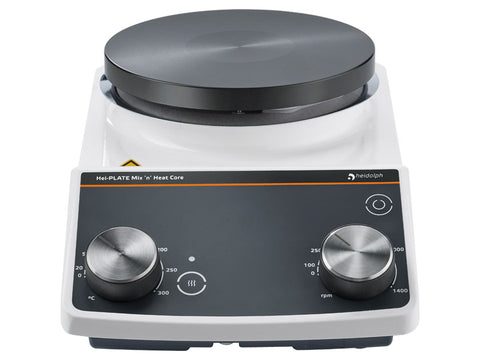

Following the motto "simply stir and heat," our entry-level model Hei-PLATE Mix 'n' Heat Core is designed with two rotary knobs for direct access to its main functions. You can set the speed and temperature using a scale, with maximum values of 1,400 rpm and 300°C.
This magnetic stirrer is easy to operate and comes equipped with crucial safety features. A large safety gap between the heating plate and control elements, combined with an optical residual heat indicator for temperatures over 50°C, helps prevent burns.
The heating function can be activated separately and is signaled by the LED button lighting up.
The patented Kera-Disk® surface, made of anodized aluminum, is chemical-resistant, scratch-proof, and has a diameter of 145 mm. The size makes it compatible with various accessories and samples while maintaining a compact footprint. The material also allows for rapid heating times.
Product Parameters
| Dimensions (W × H × D) | 168 × 101 × 299 mm |
|
Usable surface heating plate
|
∅ 135 mm |
| Weight | approx. 3 kg |
| Maximum permissible load | 25 kg |
| Driv | EC motor, left-turning |
| Speed range | 100 – 1,400 rpm |
| Heating power | 800 W at 230 V (EU); 600 W at 115 V (US) |
| Heating temperature range | 20 – 300 °C |
| Heating control | PID |
| Temperature measurement accuracy | – |
| Temperature measurement resolution | – |
| Display | – |
| Acoustic pressure | < 50 db(A) |
| Protection class (EN 60529) | IP 42 |
|
Rated voltage
|
230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US |
|

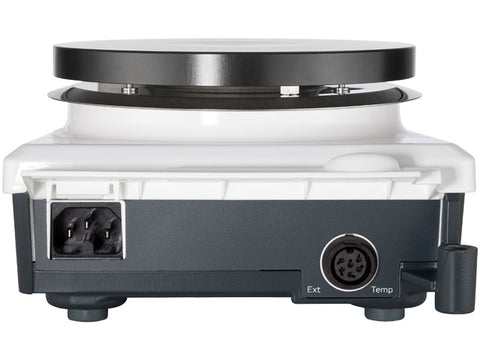

Connection
|
L+N+PE |
|
Protection class
|
I |
|
Overvoltage category
|
II |
|
Degree of pollution
|
2 |
|
Power input
|
Normal operation 230 V: 825 W (EU); Normal operation 115 V: 625 W (US); Standby mode: 1.7 W |
|
EMC clas
|
B, Group 1 |
|
Operating temperature
|
5 °C – 31 °C at up to 80 % rel. humidity 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly) |
|
Installation altitude
|
up to 2,000 m asl |
