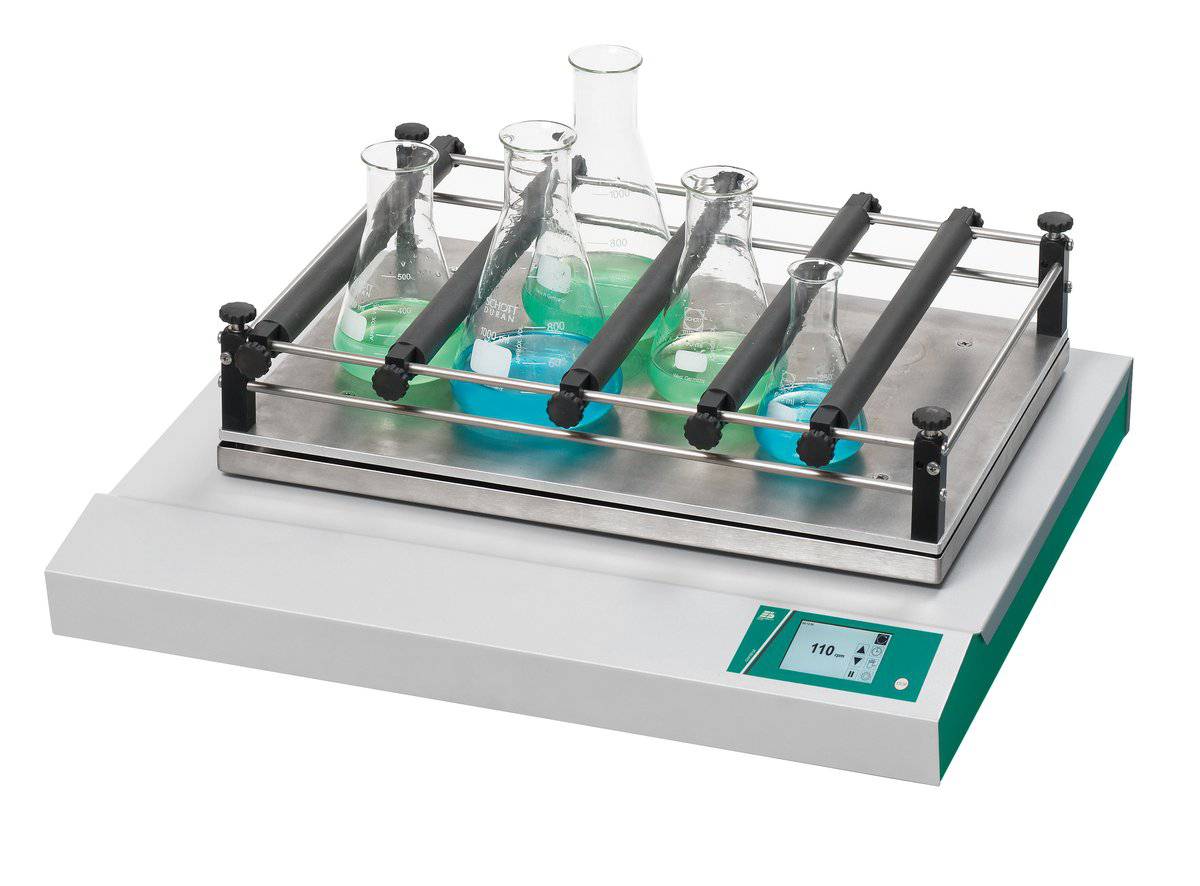

Hot Plate Shaker SM 30 AT control (Edmund Buhler, Made in Germany)
SKU: 6263000
Description
The Edmund Buhler Hot Plate Shaker SM 30 AT control with digital display and programmable control has a heating plate and works with an orbital shaking motion. This shaker is ideally suited for high loads up to 25 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.
New Design with Touch Panel Display and Control
Basic Equipment
Basic device with heating plate, without rack system
With digital display and programmable control
Loading Capacity and Accessories
Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Erlenmeyer flasks 500 ml 6 pieces
Erlenmeyer flasks 1000 ml 2 pieces
Rack System Combifix SM A, p/n 0050 154
Rack System Combifix SM B, p/n 0050 155
Rack System Combifix SM C, p/n 0050 156
Option
Control interface, p/n 0052 211
USB interface, p/n 0052 210
Details
| Motion: | orbital motion |
| Shaking platform: | 560 x 400 mm |
| Max. load: | 25 kg |
| Shaking speed: | 15 - 300 rpm, in steps of 5 |
| Stroke: | 26 mm |
| Runtime: | programmable / continuous |
| Temperature range: | up to 120 °C |
| Control accuracy: | approx. +/- 1 °C |
| Order No.: | 6263 000 (for 115V), 6200 000 (for 230V) |
Technical specifications
| Electrical supply: | 115 V, 50 / 60 Hz (230 V version upon request) |
| Enclosure protection: | IP 21 |
| Heat emission: | 400 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 680 x 610 x 160 mm |
| Weight: | 40 kg |
