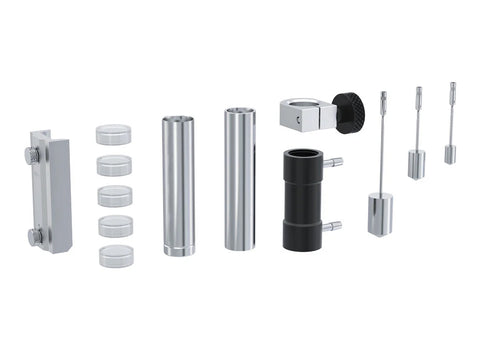

IKA DINS-1 Viscometers
SKU: 0025000387
IKA DINS-1 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000387
Adapter to comply with DIN-53019 standard.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA DINS-1 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Sample volume min. | 2 ml |
| Sample volume max. | 17 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 0.6 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 50000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 6.1 mPa.s |
| Max. FSR match ROTAVISC me-vi | 50000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 12.2 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 50000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 48.8 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 50000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 390 x 102 x 310 mm |
| Weight | 2.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
