IKA ELVAS-1 Viscometers
SKU: 0025000390
IKA ELVAS-1 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000390

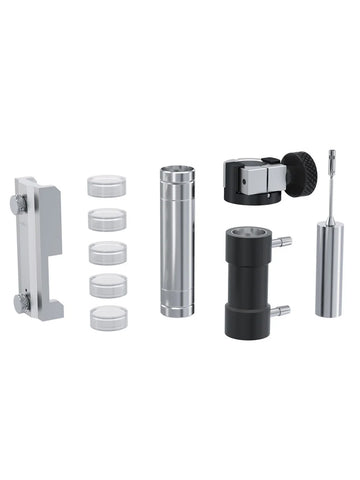

The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels. The maximum measurable viscosity is 2000 mPas.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA ELVAS-1 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Diameter | 25.15 mm |
| Spindle length | 161 mm |
| Sample volume | 16 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 1 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 2000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 3.2 mPa.s |
| Max. FSR match ROTAVISC me-vi | 2000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 6.4 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 25.6 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 2000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 300 x 110 x 275 mm |
| Weight | 1.753 kg |
| Permissible ambient temperature | 5 - 40 °C |
