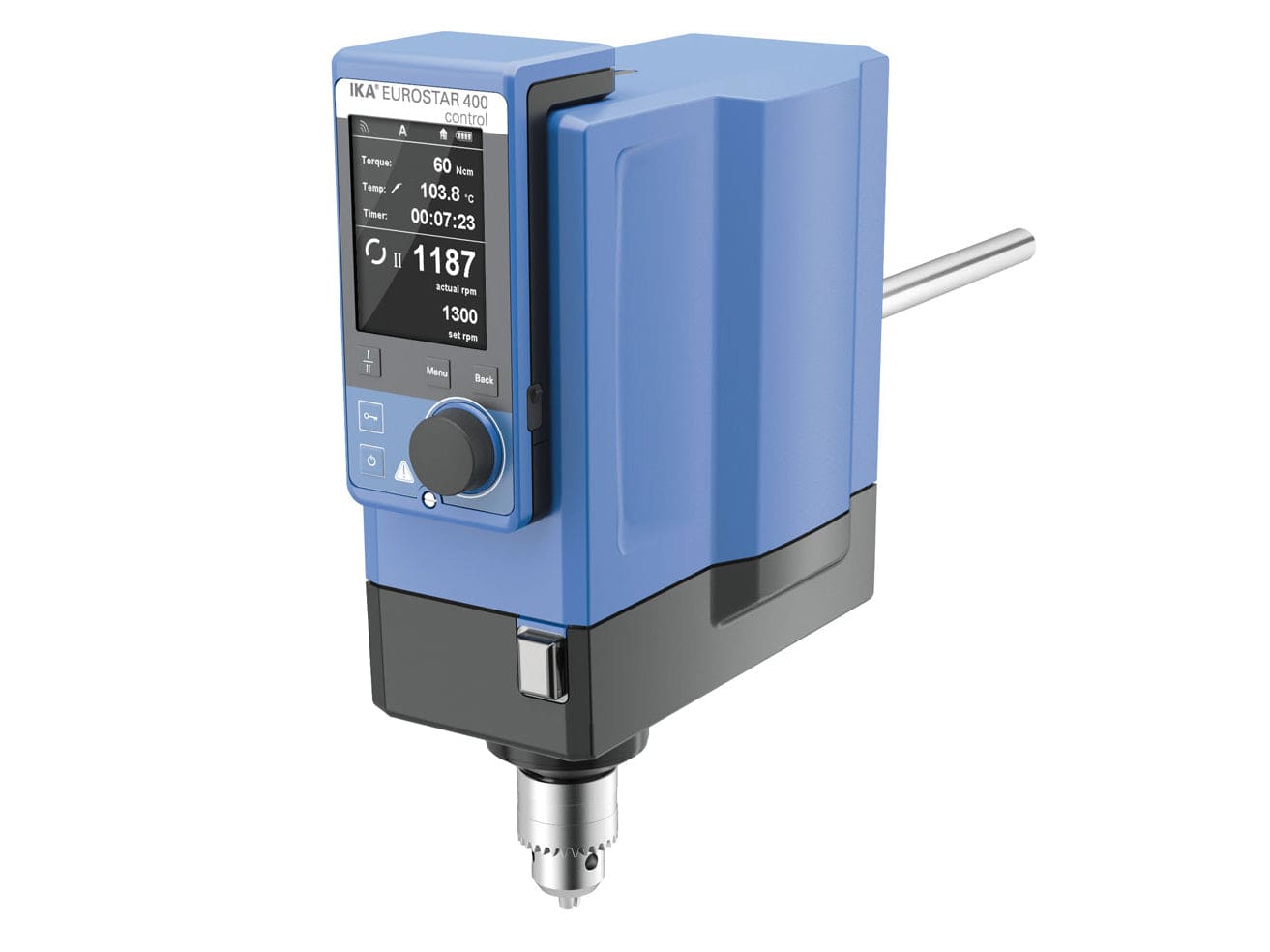

IKA EUROSTAR 400 Control Overhead Stirrers (150 L, 2000 rpm)
SKU: 0025000757
IKA EUROSTAR 400 Control Overhead Stirrers (150 L, 2000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000757
Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 L(H2O). It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology. The control stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes, as well as integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically. This ensures constant speed even with changes in viscosities of the sample.
- Multilingual TFT display
- Programmable functions
- Integrated temperature measurement
- Interval operation
- Timer function
- Adjustable safety circuit
- Locked function
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
- H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
- EUROSTAR 400 control
- H 67.60 Temperature sensor, stainless steel
- WH11
- OS 1.0 WiCo power supply unit
- USB Cable - USB A to Micro-B, 2 m
- USB cable micro A – micro B 2.0
- Screw driver
- Protective cover for WiCo contact
- Chuck key
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA EUROSTAR 400 Control Overhead Stirrers (150 L, 2000 rpm)
| Stirring quantity max. per stirring position (H2O) | 150 L |
| Motor rating input | 220 W |
| Motor rating output | 176 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/6 - 2000 rpm |
| Intermittent operation | yes |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 167 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 400 Ncm |
| Torque I max. | 400 Ncm |
| Torque II max. | 80 Ncm |
| Speed range I (50 Hz) | 6 - 400 rpm |
| Speed range II (50 Hz) | 30 - 2000 rpm |
| Speed range I (60 Hz) | 6 - 400 rpm |
| Speed range II (60 Hz) | 30 - 2000 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Chuck range diameter | 3 - 16 mm |
| Hollow shaft, inner diameter | 10.3 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 160 mm |
| Torque display | yes |
| Speed control | electronic |
| Nominal torque | 4 Nm |
| Torque measurement | trend |
| Deviation of torque measurement I | ±40 Ncm |
| Deviation of torque measurement II | ±12 Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 6000 min |
| Temperature measuring range | -10 - +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| Housing material | alu-cast coating / thermoplastic polymer |
| Communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 114 x 345 x 268 mm |
| Weight | 8.8 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 226 W |
