IKA HABITAT Ferment dw 2 Bioreactors (2200 rpm, 5°C)
SKU: 0010007659

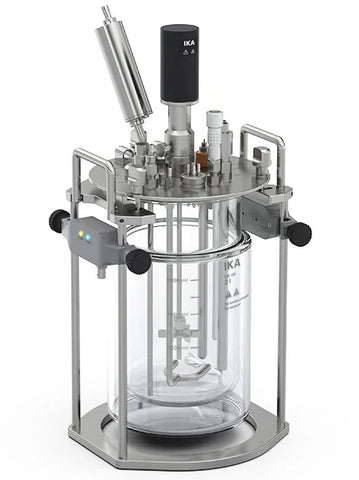

IKA HABITAT Ferment dw 2 Bioreactors (2200 rpm, 5°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010007659
The 2 l vessel package for the bioreactor HABITAT research contains a 2 l double-walled glass vessel for fermentation applications as well as the appropriate stirring drive. Together with the separately available control tower package (e.g. HABITAT ferment) you receive all necessary components for a successful cultivation. For temperature control via the double jacket we recommend one of our our circulators such as the HRC 2 basic or control.
Scope of delivery
- Stand 2
- HA.gv.dw.2 Glass vessel, double-wall
- HA.mt.s.2 Motor, small
- HA.hp.s.2 Harvest pipe, straight
- HA.ino Port for inoculation
- HA.ba.2 Baffle
- HA.sp.r.2 Ring sparger, 0.5 mm
- HA.cn Condenser
- HA.ip.b.2 6-blade segment impeller
- HA.s.tm.2 Temperature sensor
- HA.s.ph.2 pH sensor
- HA.s.do.2 DO sensor
- HA.s.fo Foam sensor
- HA.s.lv.2 Level sensor
- HA.cab.dw Cable and tube set
- HA.sf.250 Sample flask (4 pcs.)
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA HABITAT Ferment dw 2 Bioreactors (2200 rpm, 5°C)
| Reactor | Fermenter |
| Volume | 2 l |
| Type | double wall |
| Multi use | yes |
| Autoclavable | yes |
| Inner diameter | 130 mm |
| Ratio = height / inner diameter | 2 |
| Useable volume min. | 0.6 l |
| Useable volume max. | 3.0 l |
| Reactor vessel material | borosilicate glass |
| Reactor lid material | stainless steel 1.4404 |
| Net weight reactor vessel | 2.86 kg |
| Net weight reactor assembled | 10.55 kg |
| Number lid ports | 14 |
| Lid ports (Baffle) | 1 |
| Lid ports (pH) | 1 |
| Lid ports (Reserve) | 3 |
| Lid ports (Condenser) | 1 |
| Lid ports (Cooling Finger) | 1 |
| Lid ports (Inoculation) | 1 |
| Lid ports (Harvest Pipe) | 1 |
| Lid ports (Sparger) | 1 |
| Lid ports (Feed) | 0 |
| Lid ports (4in1) | 1 |
| Lid ports (Temperature) | 1 |
| Lid ports (DO) | 1 |
| Lid ports (Level) | 1 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Motor coupling | shaft feedthrough |
| Harvest pipe outer diameter | 6 mm |
| Harvest pipe inner diameter | 4 |
| Harvest pipe design | straight |
| Harvest pipe, height adjustable | yes |
| Feeding port, outer diamter | 4.5 mm |
| Feeding port, inner diamter | 2 mm |
| Feeding port, amount | 4 |
| Inoculation port, outer diamter | 6 mm |
| Inoculation port, inner diameter | 4 mm |
| Sparger | Ring sparger |
| Sparger, outer diameter | 8 mm |
| Sparger, inner diameter | 6 mm |
| Sparger pore size | 500 μm |
| Cooling finger | Accessory |
| Cooling finger connection threat | M27x3 mm |
| Cooling finger water connection, outer diamter | 8 mm |
| Stirrer design | Propeller stirrer, 6-bladed |
| Stirrer diameter 6 blade impeller | 48 mm |
| Ratio = stirrerdiameter 6blade / inner diameter reactor | 0.37 |
| Stirrer quantity | 1 |
| Condenser | yes |
| Condenser, connection threat | M16x2 |
| Type of cooling | Vertical condenser |
| Condenser Temperature min. | 5 °C |
| Temperature min. / Condenser with Peltier | 15 °C |
| Temperature min. / Condenser with water cooling | 5 °C |
| Filtertype | sterile filter |
| Filtermaterial | PTFE reinforced with PP |
| Filter housing material | PP |
| Pore size | 0.22 μm |
| Filter heater | yes |
| Spin filter | 40 μm |
| Baffle | Accessory |
| Temperature measuring | yes |
| Working temperature sensor | PT1000 |
| pH sensor | yes |
| pH sensor connection threat | PG 13.5 |
| pO2 sensor | yes |
| pO2 sensor connection threat | PG 13.5 |
| Level sensor | IKA HA.s.lv |
| Foam sensor | IKA HA.s.fo |
| Turbidity sensor | Accessory |
| Conductivity sensor | Accessory |
| CO2 sensor | Accessory |
| Speed max. | 2200 rpm |
| Dimensions (W x H x D) | 230 x 490 x 230 mm |
