IKA ICC Basic IB R RO 15 Pro Temperature Control System
SKU: 00010006741
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 00010006741

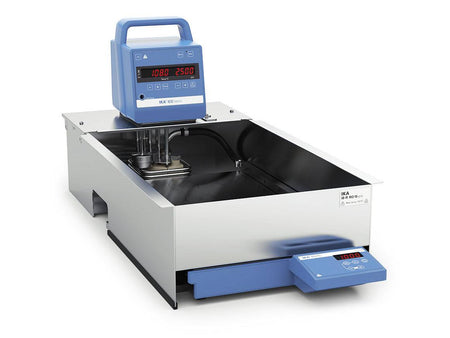

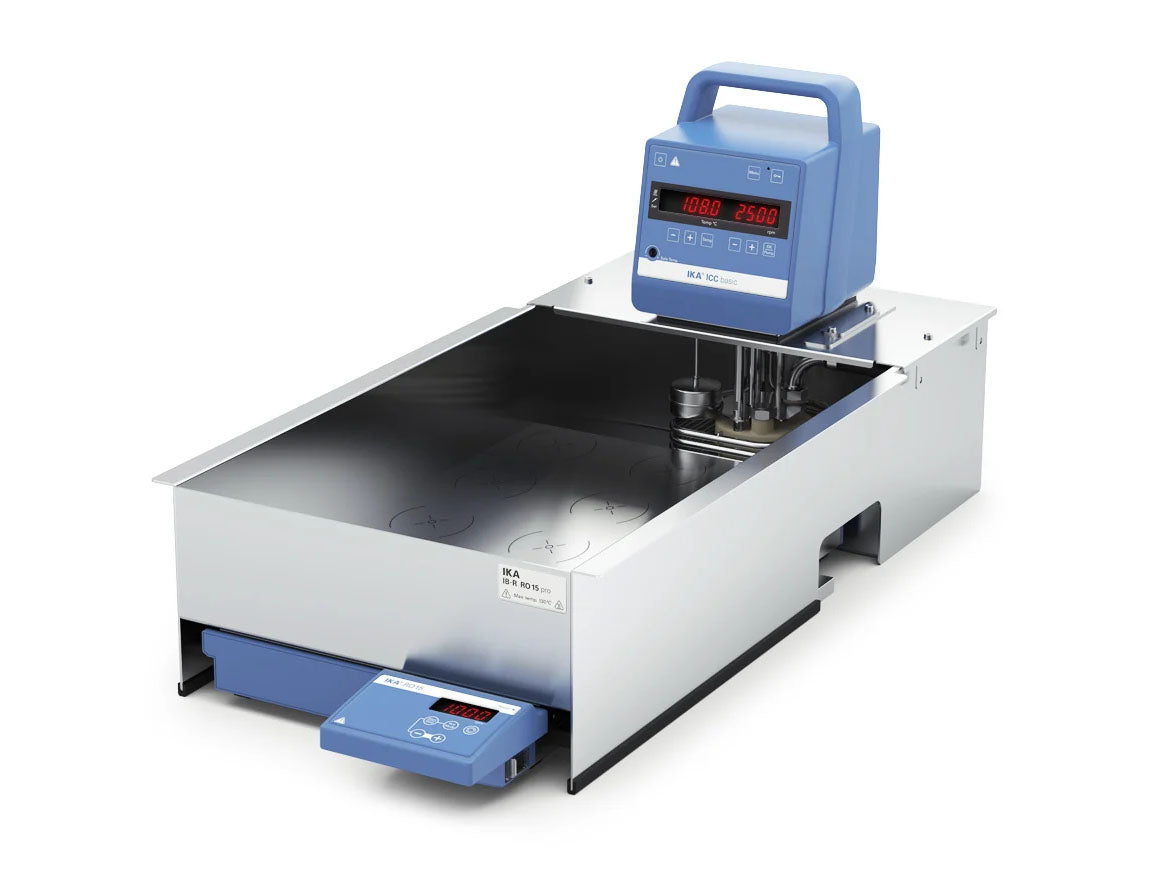

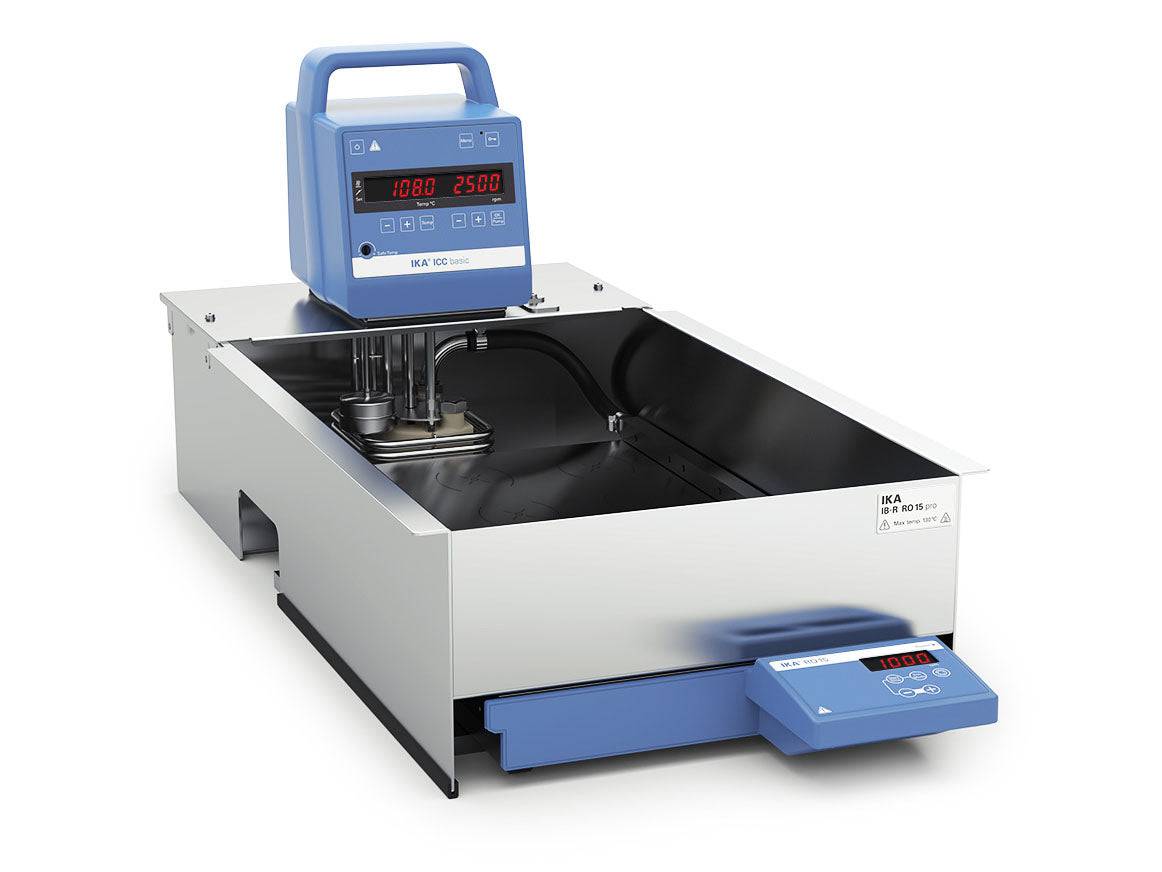

ICC basic IB R RO 15 pro is an integrated temperature control and mixing system with 15 stirring positions for glass vessels up to 250 ml.
The system includes the ICC basic immersion circulator and the bath bridge BL.ICC as well as the pump connection set PDS.IB.R.RO with flow distributor for even temperature control of the stainless steel bath over the entire bath length. 15 laser markings make it easier to position the sample vessels in the bath.
- Max. temperature: 130 °C
- Bath opening (usable sample area): 489 x 313 x 98 mm
- Immersion depth of the samples: 35-75 mm
- Stainless steel bath for magnetic stirrer RO 15, size L, 25 l volume
- Total external dimensions (depth/ width/ height) : 678 x 361 x 355 mm*
In order to achieve temperatures >80 °C in the bath when using water as a tempering medium, we recommend our floating balls made of PP.
*Technical data are related to the temperature control device included in the package.
Scope of delivery
- ICC basic
- BL.ICC Large bridge
- IB R RO 15 pro
- RO 15
- PDS.IB.R.RO
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA ICC Basic IB R RO 15 Pro Temperature Control System
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Working temperature | room temp. +10K @1000rpm - 150 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | ±0.02 K |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | ±0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 3.75 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
