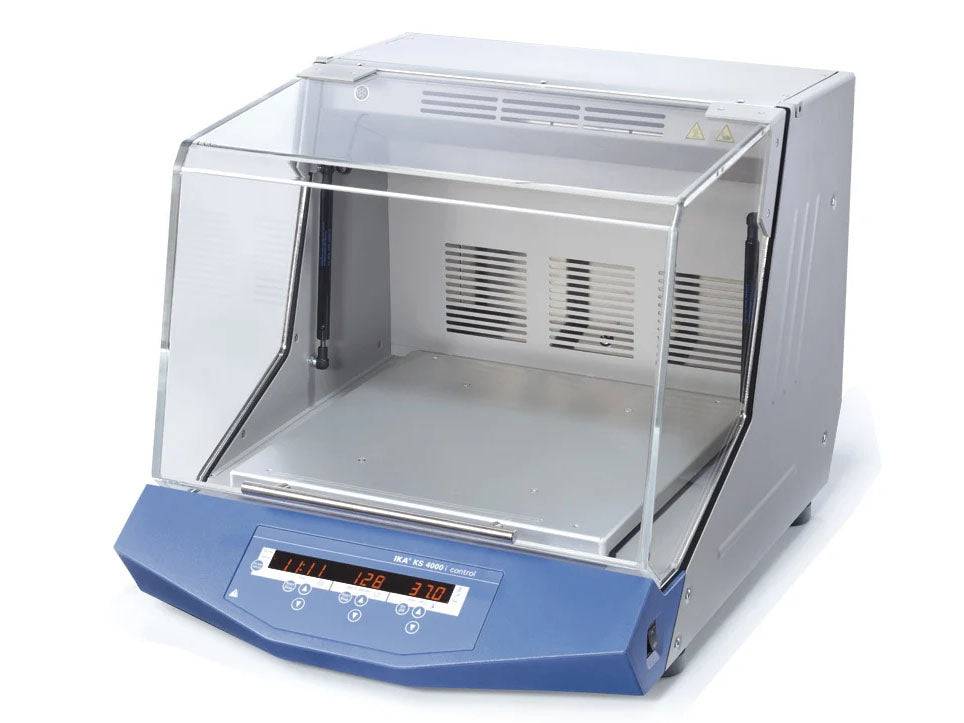

IKA KS 4000 i Control Shakers (500 rpm)
SKU: 0003510001
IKA KS 4000 i Control Shakers (500 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0003510001
Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
- Large LED display for speed and time settings
- Controls with antimicrobial coating for reduction of bacteria
- Integrated PID temperature control (use of two PT 1000 temperature sensors)
- Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
- Electronic temperature and speed control
- Electronic timer switch: 0 - 999 h (set by the minute or by the hour)
- Unit switches off automatically if disturbed
- Unit stops automatically when hood is lifted
- Collecting tray with drain hose on rear of unit
- Simple operation
- All functions can be controlled and documented with labworldsoft®
- Attachements are not included in delivery, please order separately
- KS 4000 i control
- PT 1000.60 Temperature sensor, stainless steel
- Clamping screws short (4 pcs.)
- Clamping screws long (2 pcs.)
- Cable RS 232
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA KS 4000 i Control Shakers (500 rpm)
| Type of movement | orbital |
| Shaking stroke | 20 mm |
| Permissible shaking weight (incl. attachment) | 20 kg |
| Motor rating input | 82 W |
| Motor rating output | 24 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 10 rpm |
| Speed range | 10 - 500 rpm |
| Speed display | LED |
| Speed deviation | ±5 rpm |
| Speed adjustment | 1 RPM steps |
| Timer | yes |
| Timer display | 7 segment LED |
| Time setting range | 1 - 59940 min |
| Operating mode | timer and continuous operation |
| Heating temperature range | room temp. +5° - 80 °C |
| Heat output | 1000 W |
| Set temperature resolution | ±0.1 K |
| Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) | ±0.5 K |
| Temperature display | yes |
| Temp. stability (0,2l H2O; RT 25°C, T=37°C) | ±0.1 K |
| Operating area inner chamber | 440 x 440 x 352 mm |
| Total volume inner chamber | 90 l |
| Raw material housing | Sheet metal powder coat |
| Raw material front foil | polyester |
| Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) | ±0.05 K |
| Temperature homogeneity (5 vessel 0.5 L; RT 25°C, T=37°C) | ±0.5 K |
| Height with open hood | 875 mm |
| Dimensions (W x H x D) | 580 x 520 x 750 mm |
| Weight | 50 kg |
| Permissible ambient temperature | 15 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1120 W |
| Fuse | 2x T16A 250V |
