IKA MATRIX Orbital Delta FP Thermoshakers
SKU: 0010006512

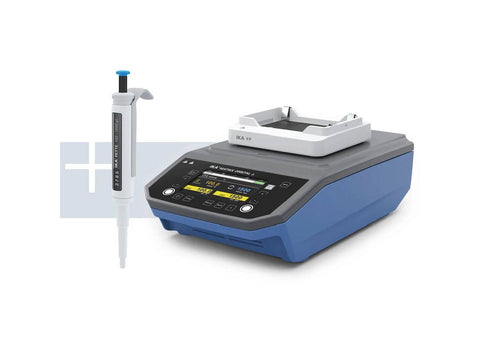

IKA MATRIX Orbital Delta FP Thermoshakers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010006512
The IKA Matrix Orbital Δ FP is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital Δ FP mixes, heats and has a universal holder for microtiter plates. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, IKA Matrix Orbital Δ FP comes with numerous user-friendly features:
In addition, IKA Matrix Orbital Δ FP comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for intuitive operation
- Stable quick lock for fast and easy change of inserts and attachments as well as automatic attachment detection
- Speeds of up to 2,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Two different speed modes for gentle heating of the samples
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
- MATRIX Orbital Delta FP
- IKA PETTE vario 100-1000 µl
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MATRIX Orbital Delta FP Thermoshakers
| Type of movement | orbital |
| Shaking stroke | 3 mm |
| Maximun load | 0.3 kg |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 300 rpm |
| Speed range | 0 - 2000 rpm |
| Speed display | TFT |
| Speed deviation | ±30 rpm |
| Speed adjustment | 10 RPM Steps |
| Timer | yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Operating mode | timer, continuous and program operation |
| Working with microtiter plates | yes |
| Number of microtiter plates | 1 |
| Heating temperature range | room temp. +4° - 100 °C |
| Heat output | 100 W |
| Heat control | TFT |
| Set temperature resolution | ±1 °C |
| Temperature control accuracy | ±1.0 (@ 20°C … 45°C); ±4.0 °C |
| Temperature stability | 0.5 °C |
| Temperature homogenity | ±0.5 (@ 20°C ... 45°C); ±1.5 °C |
| Heating rate | 18 °C/min |
| Temperature display | yes |
| Number of PCR plates | 1 |
| Number of Deep Well Plates (DWP) | 1 |
| Dimensions (W x H x D) | 216 x 147 x 351 mm |
| Weight | 9.2 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 240 W |
| Power input max. | 240 W |
| Fuse | 2x T4A 250V |
