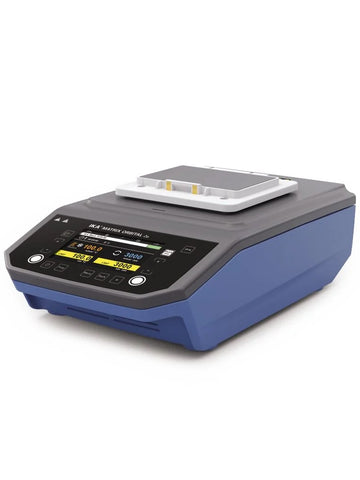

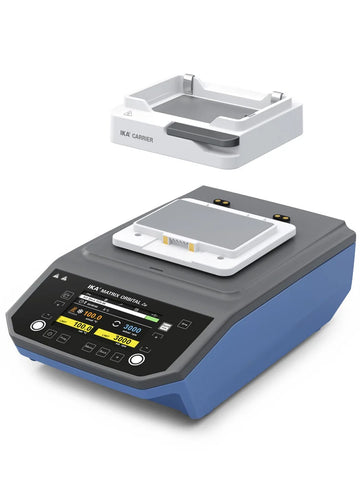

IKA MATRIX Orbital Delta Plus Thermoshakers (3000 rpm)
SKU: 0010007274
IKA MATRIX Orbital Delta Plus Thermoshakers (3000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010007274
The all-rounder MATRIX Orbital Delta plus mixes, heats and cools reliably with variable inserts.
Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably mixed and tempered in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, MATRIX Orbital Delta plus comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for an intuitive operation
- Firm quick-release fastener for quick and easy changing of the inserts/attachments as well as an automatic attachment detection
- Quick and effective mixing of liquids with up to 3,000 rpm and 3 mm shaker diameter
- Reduced waiting time through fast heating and cooling rates of up to 6 °C/min (heating) or 2.5 °C/min at set-point temperature above the ambient temperature (cooling, 0.5 °C/min at set-point temperature between ambient temperature and 15 °C below ambient temperature)
- Automatic performance of mixing, heating and cooling tasks through programmable ramps
- Wide range of inserts for reaction vessels and plates
- Intelligent speed adaption to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
The device is ideally suited for numerous applications in laboratories, such as:
- Tempering / mixing of samples
- Synthesis of cDNA
- Enzyme-catalysed linking of RNA or DNA (ligation)
- Lysis reactions
- Structural change of DNA, RNA and proteins (denaturation)
Scope of delivery
- MATRIX Orbital Delta Plus
- USB A-B Cable
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MATRIX Orbital Delta Plus Thermoshakers (3000 rpm)
| Type of movement | orbital |
| Shaking stroke | 3 mm |
| Maximun load | 0.3 kg |
| Motor rating output | 88 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 300 rpm |
| Speed range | 0 - 3000 rpm |
| Speed display | TFT |
| Speed deviation | ±30 rpm |
| Speed adjustment | 10 RPM Steps |
| Timer | yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Operating mode | timer, continuous and program operation |
| Working with microtiter plates | yes |
| Working temperature min. | room temp. -15 °C |
| Temperature setting range min. | 1 °C |
| Heating temperature max. | 100 °C |
| Heat output | 100 W |
| Heat control | TFT |
| Set temperature resolution | ±1 °C |
| Temperature control accuracy | ±0.5 °C |
| Temperature stability | 0.5 °C |
| Temperature homogenity | ±0.5 °C |
| Heating rate | 6 °C/min |
| Temperature display | yes |
| Cooling Rate | 0.8 °C/min |
| Cooling Power | 72 W |
| Number of exchangable attachments | 10 |
| Dimensions (W x H x D) | 216 x 127 x 351 mm |
| Weight | 10 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 230 W |
| Power input max. | 230 W |
| Fuse | 2x T4A 250V |
