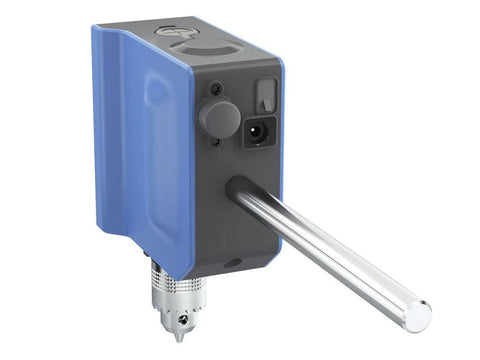

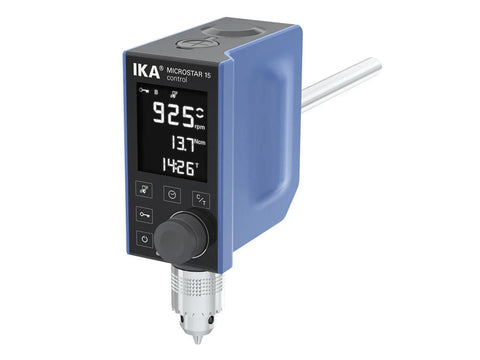

IKA MICROSTAR 15 Control Overhead Stirrers (10L, 1000 rpm)

SKU: 0025005285

  • $ 2,03995
  • Save $ 10800


IKA MICROSTAR 15 Control Overhead Stirrers (10L, 1000 rpm

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025005285

The new MICROSTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

“The Youngster” in the smallest high-tech class, moderately strong and fast!
  • Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
  • State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
  • Clear display for all essential information at a glance
  • Integrated timer / counter for the control of kinetic sensitive reactions and reminders
  • Viscosities up to 8,000 mPas and volume of up to 10 L
  • Continuously adjustable speed between 0/30 – 1,000 rpm
  • USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
  • Intuitive and simple handling; touch-sensitive surface for long service life
  • Temperature reading on display
  • Chemical resistant housing
  • Key lock function
  • Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Scope of delivery
  • MICROSTAR 15 control
  • R 300 shaft protector
  • Fasten screws for R 300 (2 pcs.)
  • H 67.60 Temperature sensor, stainless steel
  • chuck key


                                          About IKA

                                          Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

                                          Technical Data of IKA MICROSTAR 15 Control Overhead Stirrers (10L, 1000 rpm)

                                          Stirring quantity max. per stirring position (H2O) 10 L
                                          Motor rating input 32 W
                                          Motor rating output 22 W
                                          Motor principle Brushless DC
                                          Speed display LCD
                                          Speed range 0/30 - 1000 rpm
                                          Viscosity max. 8000 mPas
                                          Output max. at stirring shaft 15.7 W
                                          Permissible ON time 100 %
                                          Torque max. at stirring shaft 15 Ncm
                                          Speed adjustment Turning knob
                                          Setting accuracy speed ±1 rpm
                                          Deviation of speed measurement n > 300rpm ±1 %
                                          Deviation of speed measurement n < 300rpm ±3 rpm
                                          Stirring element fastening chuck
                                          Connection for ext. temperature sensor PT1000
                                          Temperature display yes
                                          Chuck range diameter 0.5 - 8.2 mm
                                          Hollow shaft, inner diameter 8.5 mm
                                          Hollow shaft (push-through - when stopped) yes
                                          Fastening on stand extension arm
                                          Extension arm diameter 13 mm
                                          Extension arm length 160 mm
                                          Torque display yes
                                          Speed control electronic
                                          Nominal torque 0.15 Nm
                                          Torque measurement trend
                                          Deviation of torque measurement I ±3 Ncm
                                          Timer yes
                                          Timer display LCD
                                          Time setting range 0 - 6000 min
                                          Temperature measuring range -10 - 350 °C
                                          Temperature measurement resolution 0.1 K
                                          Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
                                          Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
                                          Housing material alu-cast coating / thermoplastic polymer
                                          Communication distance (depend onbuilding) max. 150 m
                                          Dimensions (W x H x D) 60 x 173 x 136 mm
                                          Weight 1.26 kg
                                          Permissible ambient temperature 5 - 40 °C
                                          Permissible relative humidity 80 %
                                          Protection class according to DIN EN 60529 IP 54
                                          USB interface yes
                                          Voltage 100 - 240 V
                                          Frequency 50/60 Hz
                                          Power input 32 W
                                          DC Voltage 24 V
                                          Current consumption 1300 mA
