IKA MultiDrive Control BT Package Mills (20000 rpm)
SKU: 0010007108
IKA MultiDrive Control BT Package Mills (20000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010007108
Crushing without cross-contamination - this is possible with the MultiDrive control package including autoclavable disposable tubes BT 250 and the required TC 1 protective housing for dry samples.

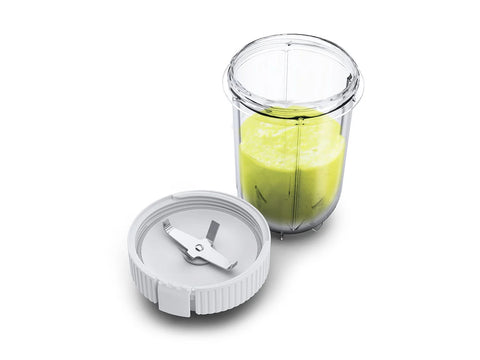

BT 250 is a disposable tube with a cross-shaped stainless steel beater and flow breakers. The plastic blending tube can be autoclaved. This effectively prevents cross-contamination even if it is used multiple times. An integrated RFID chip simultaneously stores and limits the lifespan of the blending tube. 5 spare seals are included in the scope of delivery. By replacing the seal, the service life of the blending tube can be extended. The disposable tube can only be operated with the TC 1 protective housing which is also included in the scope of delivery.

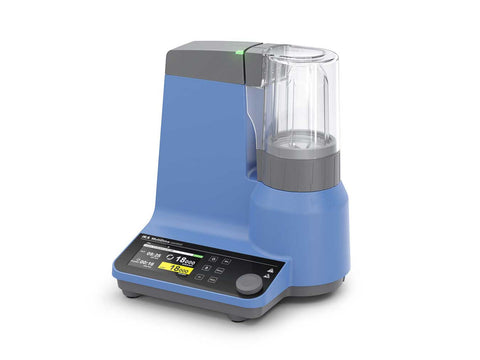

MultiDrive universal crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. There is a USB interface available for easy actuation and documentation respectively.
High performance
Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
Interval operation
The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.
Integrated cooling
A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate.
TFT-display
A clear TFT-display guarantees user-friendly operation.
Temperature measurement
MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating.
Weighing function
The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required.
Scope of delivery
- IKA MultiDrive control
- MultiDrive TC 1 Protective housing
- MultiDrive BT 250.5 Blending tube, autoclavable
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MultiDrive Control BT Package Mills (20000 rpm)
| Process type | batch |
| Operating principle | cutting/impact/blending/dispersing |
| Motor rating input | 1000 W |
| Motor rating output | 800 W |
| Speed range | 3000 - 20000 rpm |
| Speed deviation | ±5 % |
| Power-ON time | 5 min |
| Power-OFF time | 10 min |
| Motor principle | Brushless DC |
| Display | TFT |
| RFID reader/writer unit | yes |
| Temperature display | yes |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±1 K |
| Temperature limit min. | -50 °C |
| Temperature limit max. | 120 °C |
| Monitoring maintain time | yes |
| Weighing function | yes |
| Weighing range | 5 - 4000 g |
| Weighing resolution | 1 g |
| Load capacity weighing function max. | 4 kg |
| Weighing accuracy | ±(0.3%+2) g |
| Vessels detection | yes |
| Ramp programming | yes |
| Dimensions (W x H x D) | 300 x 350 x 250 mm |
| Weight | 8.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 31 |
| USB interface | yes |
| Bluetooth interface | yes |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1000 W |
