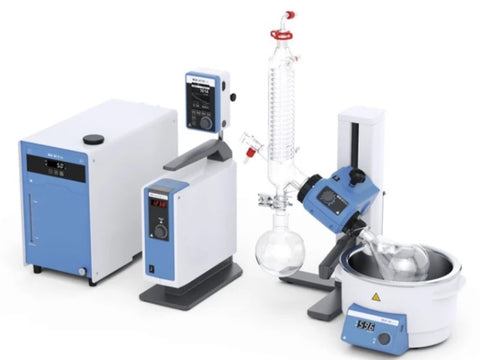

IKA RV 3 Pro V Complete Rotary Evaporators (300 rpm, RT-99°C)
SKU: 0010011965
IKA RV 3 Pro V Complete Rotary Evaporators (300 rpm, RT-99°C)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010011965
The RV 3 pro V Complete package is the complete solution for your rotary evaporator setup.
In addition to the RV 3 V rotary evaporator, the package includes the HB eco heating bath with a capacity of 4 liters and a heating temperature range from RT to 99 °C, a highly efficient vertical glass cooler set with 1L collecting and evaporating flasks, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite circulation cooler. All components and connections required for operation are included.
The RV 3 rotary evaporator is the ideal entry-level model among the IKA rotary evaporators. It can be used in a variety of ways in the chemical, pharmaceutical and bio-industry industries, in the areas of research and development, production and quality assurance, in laboratories and in plant engineering. Thanks to specially developed glass guides, the cooler uses the 1600 cm² cooling surface extremely efficiently.
The VACSTAR digital vacuum pump included in the delivery is extremely space-saving and achieves a minimum vacuum of 2 mbar. It is controlled by the VC 10 lite vacuum controller included. In addition to regulating the circulation cooler, this also enables manual entry of the vacuum setpoint and program-controlled function.
The compact RC 2 lite circulation cooler with a powerful 400 watt cooling capacity and powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C. The easily accessible and easy-to-clean stainless steel mesh filter ensures consistently high cooling performance for years. The natural refrigerant R290 makes the RC 2 lite particularly environmentally friendly and well prepared for the future.
Guarantee
By registering online at www.ika.com/register, you can extend the guarantee of your devices free of charge. For rotary evaporators and heating baths, the standard guarantee is two years, plus an additional three years after registration (2+3). For peripherals included in the package (vacuum pump and cooler) , the additional warranty is one year (2+1).
Included with Unit:
- RV 3 FLEX
- RV 10.900 Glass set vertical
- VC 10 lite
- VACSTAR digital
- VC 10.500 tripod rod
- RC2 lite
- RV 10.5005 Hose set
- PC 1.3 Cable
Technical Data
Radiator design | perpendicular |
Cooling surface | 1600cm2 |
Motor principle | Direct current |
Speed range | 20 - 300 rpm |
Speed tolerance target speed <100rpm | ±1rpm |
Speed tolerance target speed >100rpm | ±1% |
Lift | manually |
Hub | 150mm |
Heating temperature range | Room temp. - 99 °C |
Dimensions (W x H x D) | 440x530x330mm |
Weight | 28.3kg |
Permissible ambient temperature range | 5 - 40 °C |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP20 |
Tension | 100 - 240V |
frequency | 50/60Hz |
Device power consumption | 1400W |
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
