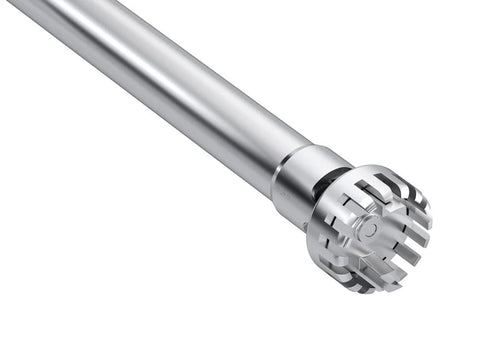

IKA S 50KD-G45G Dispersing Tool for T 50 Digital Disperser
SKU: 0010000629
IKA S 50KD-G45G Dispersing Tool for T 50 Digital Disperser
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0010000629
Dispersing tool for the disperser T 50 digital
Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 150
Shaft length [mm]: 300
Diameter stator/rotor [mm]: 45/36
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 70 - 260
Recommend working range [ml]: 500 - 20,000
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA S 50 KD - G45G Dispersing Tool Dispersers (10000 rpm)
| Volume range (H2O) | 0.5 - 20 L |
| Stator diameter | 45 mm |
| Rotor diameter | 36 mm |
| Gap between rotor and stator | 0.5 mm |
| allowable Speed max. | 10000 rpm |
| Circumferential speed max. | 18.8 m/s |
| Immersion depth | 70 - 260 mm |
| Shaft length | 300 mm |
| Material in contact with medium | FFPM, PTFE, AISI316L |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Working temperature max. | 150 °C |
| Sterilization methods | autoclavable |
| Vacuum | 100 mbar |
| Ultimate fineness, suspensions | 40 - 100 µm |
| Ultimate fineness, emulsions | 10 - 30 µm |
| Weight | 0.9855 kg |
