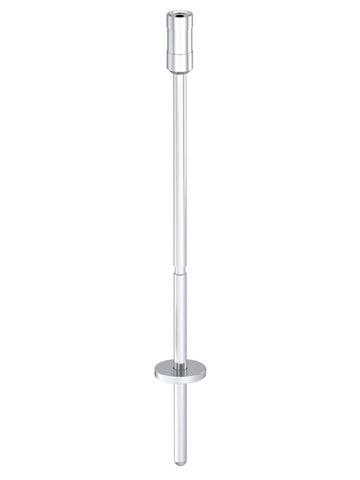

IKA SP-3 Viscometers
SKU: 0025006830
IKA SP-3 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025006830
Standard spindle
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SP-3 Viscometers
| Spindle geometry | Disc |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 12.6 mm |
| Immersion depth | 50 mm |
| Spindle length | 115 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 599.9 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 119974 mPa.s |
| Min. FSR match ROTAVISC me-vi | 6400.0 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1280000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 12800.0 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2560000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 51200 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 10240000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 14 x 117 x 14 mm |
| Weight | 0.011 kg |
| Permissible ambient temperature | 5 - 40 °C |
