IKA SY 500 D Reactor Vessel Synthesis Reactors
SKU: 0020113460
IKA SY 500 D Reactor Vessel Synthesis Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020113460

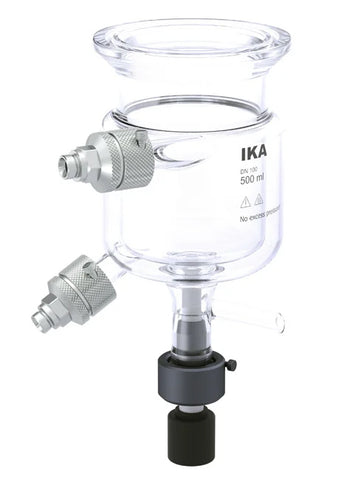

Double-walled reactor vessel with bottom discharge including accessories for the EasySyn reactor system.
Volume: 500 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.
Scope of delivery:
Glasreactor incl. metal adapter
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SY 500 D Reactor Vessel Synthesis Reactors
| Volume | 0.5 l |
| Fill level diameter ratio | 1.375 |
| Fill level at nominal volume | 72 mm |
| Vessel inner diameter | 99 mm |
| Vessel outer diameter | 130 mm |
| Height (room dimension) | 313 mm |
| Width (room dimension) | 203 mm |
| Depth (room dimension) | 141 mm |
| Flange type | acc. DIN 12214 with circular groove |
| Flange dimension | DN100 |
| Flange collar diameter | 108 mm |
| Bottom shape | Torispherical head |
| Bottom drain | yes |
| Bottom valve | Safety valve |
| Bottom drain outlet inner diameter | 10 mm |
| Bottom drain outlet outer diameter | 15 mm |
| Bottom drain outlet length | 65 mm |
| Bottom drain shape | straight |
| Tempering jacket filling capacity | 0.40 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Thread closure system | M16x1 |
| Width across flats | WAF 22 |
| Material closure system | stainless steel 1.4404 |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 - 200 °C |
| Useable volume | 30 - 610 ml |
| Useable volume with temperature probe min. | 260 ml |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
| Material in contact with medium | borosilicate glass 3.3 DIN ISO 3585, PTFE |
