IKA Twister Set 1 Magnetic Stirrers (3000 rpm)
SKU: 0020027010
IKA Twister Set 1 Magnetic Stirrers (3000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020027010

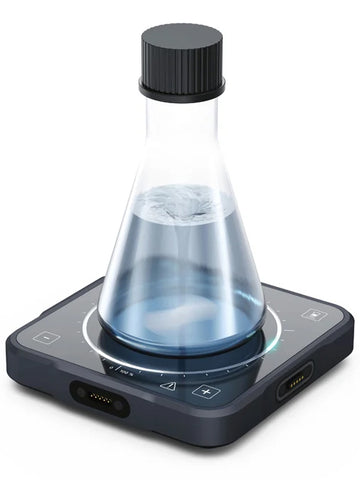

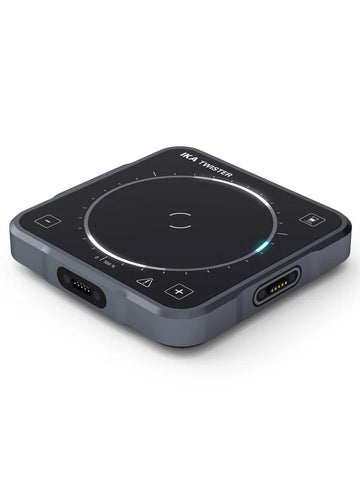

TWISTER is a universal and compact mixing device with magnetic drive. In the TWISTER SET 1, one drive is included.
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas.
By connecting additional TWISTER stirring units (available as accessories, ID no. 0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle).
Versatile accessories

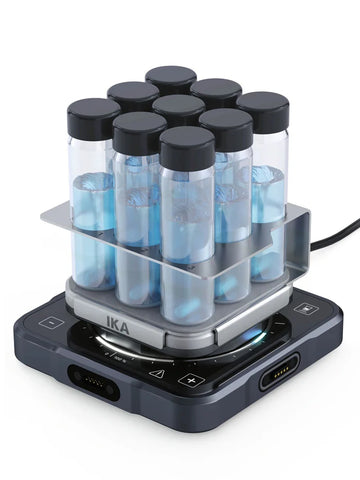

With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8 - 60 ml).

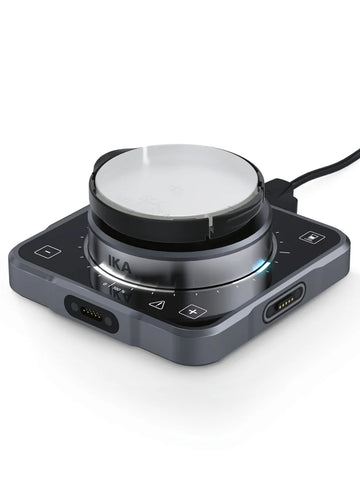

The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker.
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument. Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display. During operation, either the speed or the power required for stirring can be displayed. For example, viscosity changes can be observed and displayed as a percentage.
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker.
The reverse function changes the direction of rotation at definable time intervals. This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix.
Robust and safe
The high protection class IP 66 allows operation under harsh conditions. TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C.
The compact and innovative design has already been awarded the reddot Award 2022. It is particularly suitable for use in laboratories with limited space.
* Depending on the number of devices, a different power supply may have to be used. The included power supply is designed to power up to two devices.
Scope of delivery
- TWISTER S099
- Power supply
- IKAFLON® 25 Magnetic stirring bar
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA Twister Set 1 Magnetic Stirrers (3000 rpm)
| Number of stirring positions | 1 |
| Stirring quantity min. per stirring position (H2O) | 0.005 l |
| Stirring quantity max. per stirring position (H2O) | 5 l |
| Motor rating output | 5 W |
| Direction of rotation | right / left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range | 100 - 3000 rpm |
| Setting accuracy speed | 100 rpm |
| Stirring bar length | 10 - 30 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +6 K |
| Set-up plate material | glass |
| Set-up plate dimensions | 124 x 124 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | yes |
| Viscosity trend measurement | yes |
| Time setting min. | 6 s |
| Time setting max. | 30 min |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
| Modular expandable stirring system (2-30 units) | yes |
| Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) | yes |
| Vessel detection (optional activated/deactivated) | yes |
| Dimensions (W x H x D) | 135 x 24 x 135 mm |
| Weight | 0.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 66 |
| USB interface | optional |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 10 W |
| Power input standby | 2 W |
| DC Voltage | 24 V= |
| Current consumption | 400 mA |
