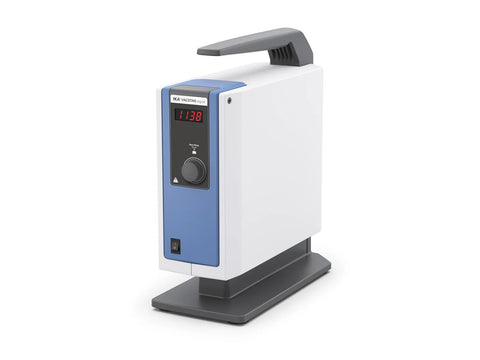

IKA VACSTAR Digital Vacuum Pump
SKU: 0020016237
IKA VACSTAR Digital Vacuum Pump
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020016237 (US) /0020016236 (EU)
The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.
Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analogue cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally it is recommended to use the VSE 1 vacuum safety emission. It prevents that solvents are released into ambient air.
The Vacstar digital is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.
Scope of delivery
- Vacuum hose (1 m)
- Silencer
- USB cable
- "Connecting cable MVP
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VACSTAR Digital Vacuum Pump
| Pump rate max. (50/60Hz) | 1.32 m³/h |
| Pump rate max. (50/60Hz) | 22 l/min |
| Final pressure without gas ballast | 2 mbar |
| Suction levels | 4 |
| Cylinder | 4 |
| Connection diameter suction side | 8 mm |
| Connection diameter pressure side | 8 mm |
| Input pressure | 2 - 1030 mbar |
| Two-point control | yes |
| Analog speed vacuum control | yes |
| Speed adjustment | Turning knob |
| Speed range | 285 - 1200 rpm |
| Display | LED |
| Noise at low. pressure | 54 dB(A) |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Mode automatic | yes |
| Mode manual | yes |
| Mode pump % | yes |
| Mode program | yes |
| Dimensions (W x H x D) | 150 x 375 x 370 mm |
| Weight | 11.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible ambient conditions | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
| Power input standby | 3 W |
