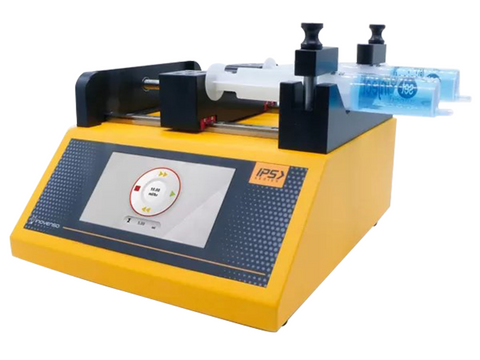

Inovenso IPS-13 Double Channel Syringe Pump

Inovenso IPS-13 Double Channel Syringe Pump

SKU: INVSIPS13

  • $ 1,00995
  • Save $ 11200

Inovenso IPS-13 Double Channel Syringe Pump

Buy Inovenso IPS syringe pump from MSE Supplies at the best value.

Overview

The IPS-13 Syringe Pump is a highly versatile and precision-engineered device designed to meet the diverse fluid handling needs across various industries. With its advanced features and robust construction, the IPS-13 offers reliable performance and precise control over fluid delivery processes.

Key Features:

  • Interdependent Syringe Channels: The IPS-13 features two interdependent syringe channels, allowing for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-13 accommodates syringes made of glass, plastic, and steel, offering versatility in fluid handling applications. It supports syringes ranging from Hamilton 0.5 μl to Monoject 140 ml, providing flexibility to users for different volume requirements.
  • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13 ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates, guaranteeing reliable performance in various tasks.
  • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by user-friendly microcontroller software, the IPS-13 offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: The IPS-13 allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters as needed for optimal performance. This adaptability ensures versatility in handling diverse fluid handling tasks with precision and control.

Technical Specifications:

Syringes
Capacity 2 Interdependent
Type Glass, plastic, steel
Min Size Hamilton 0.5 µl (ID:0.103mm)
Max Size Monoject 140 ml (ID:38mm)
Flow Rate
Min 17.89 pl/min (Hamilton 0.5 µl)
Max 121.51 ml/min (140 ml Monoject Syringe)
Motor Type Stepper Motor
Motor Drive Controller Microcontroller with Microstep Drive
Step Resolution (Travel/Microstep) 357 nm/µstep
Step Rate
Min 10 sec/µstep
Max 200 µsec/µstep
Min 2.14 µm/min
Max 107.14 µm/min
Linear Speed Rate (Pusher Travel Rate)
Linear Force 20 kg
Connectors Wi-fi (optional)
Recipe Save-Recall No
Power Supply 12 VDC 1A (110-240 VAC adapter included)
Dimensions W:200 L:250 H:137 mm
Weight 2.9 kg
Environmental Specifications
Operating Temperature Between -10 and 50 (°C)
Storage Temperature Between -30 and 85 (°C)
Operating Humidity RH 10% - RH 90% (not condensed)
Storage Humidity RH 10% - RH 90% (not condensed)

MSE Supplies offers a variant of Syringe Pump. Please contact us for more information.
