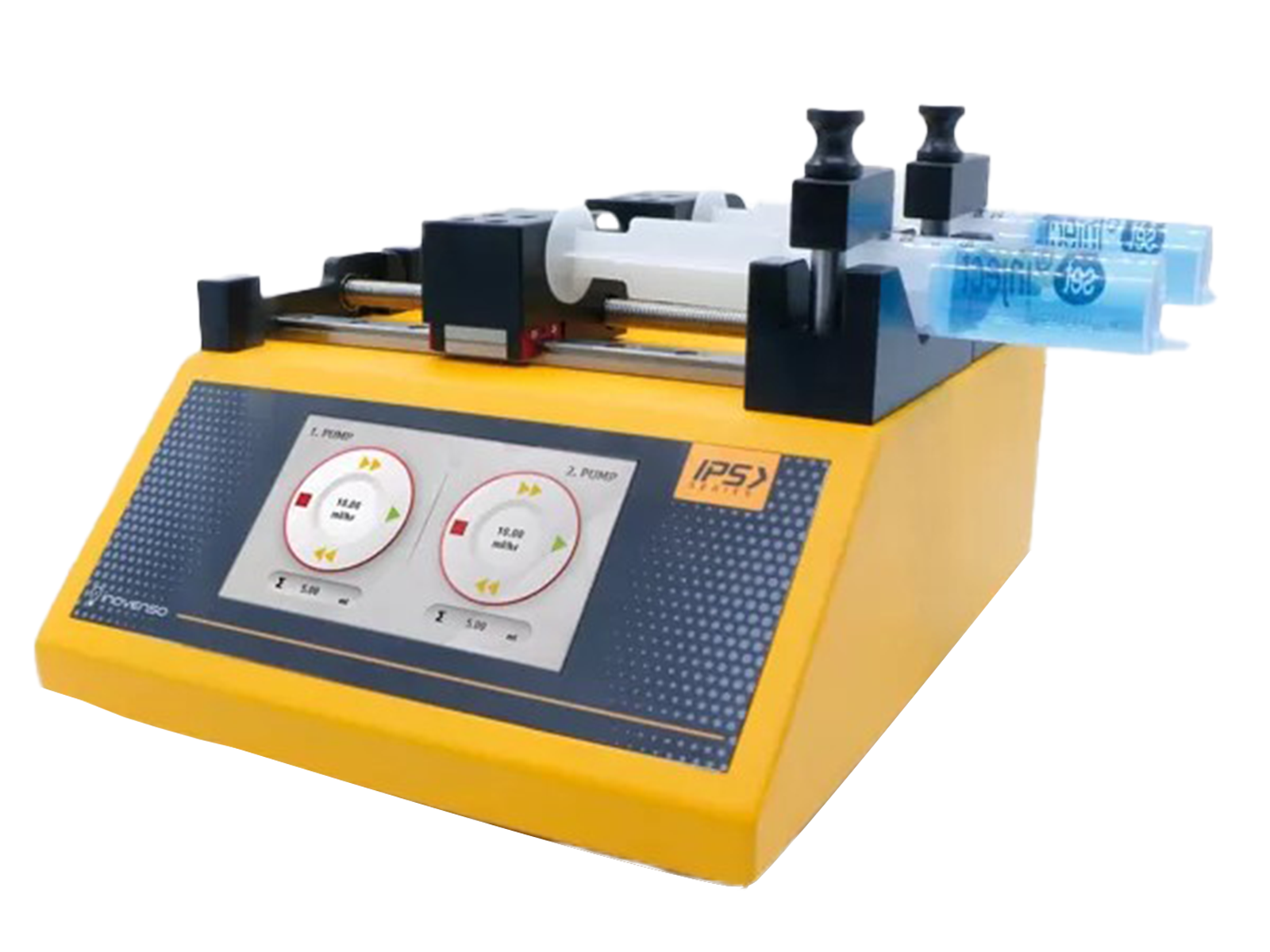

Inovenso IPS-14 Independent Double Channel Syringe Pump
SKU: INVSIPS14
Inovenso IPS-14 Independent Double Channel Syringe Pump
Buy Inovenso IPS syringe pump from MSE Supplies at the best value.
Overview
The IPS-14 Syringe Pump is a sophisticated dual-channel device designed to meet the complex fluid handling requirements in various industries. With its precision engineering and innovative features, the IPS-14 ensures reliable performance and precise control over fluid delivery processes.
Key Features
- Independent Syringe Channels: Equipped with two independent syringe channels, the IPS-14 allows for simultaneous operation of different fluids or independent control over each channel. This feature enhances flexibility and efficiency in multi-channel applications.
- Wide Syringe Compatibility: The IPS-14 supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
- Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14 ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep.
- Intuitive Interface: The IPS-14 is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
- Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.
Technical Specifications:
| Syringes | |
| Capacity | 2 Interdependent |
| Type | Glass, plastic, steel |
| Min Size | Hamilton 0.5 µl (ID:0.103mm) |
| Max Size | Monoject 140 ml (ID:38mm) |
| Flow Rate | |
| Min | 17.89 pl/min (Hamilton 0.5 µl) |
| Max | 121.51 ml/min (140 ml Monoject Syringe) |
| Motor Type | Stepper Motor |
| Motor Drive Controller | Microcontroller with Microstep Drive |
| Step Resolution (Travel/Microstep) | 357 nm/µstep |
| Step Rate | |
| Min | 10 sec/µstep |
| Max | 200 µsec/µstep |
| Min | 2.14 µm/min |
| Max | 107.14 µm/min |
| Linear Speed Rate (Pusher Travel Rate) | |
| Linear Force | 20 kg for each syringe |
| Connectors | Wi-fi (optional) |
| Recipe Save-Recall | No |
| Power Supply | 12 VDC 1A (110-240 VAC adapter included) |
| Dimensions | W:200 L:257 H:137 mm |
| Weight | 3.3 kg |
| Environmental Specifications | |
| Operating Temperature | Between -10 and 50 (°C) |
| Storage Temperature | Between -30 and 85 (°C) |
| Operating Humidity | RH 10% - RH 90% (not condensed) |
| Storage Humidity | RH 10% - RH 90% (not condensed) |
MSE Supplies offers a variant of Syringe Pump. Please contact us for more information.
