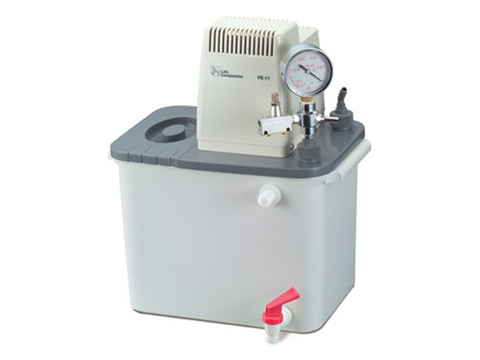

Jeio Tech Lab Companion VE-11 Electric Aspirator Pump
SKU: AAH71027U
Jeio Tech Lab Companion VE-11 Electric Aspirator Pump, Cole Parmer (Model: 35031-00)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers the Jeio Tech Lab Companion VE-11 Electric Aspirator Pump, Cole Parmer (Model: 35031-00).
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Fast formation of low vacuum, state via two aspirators.
- Use PP having good chemical-resistance for contact parts of organic solvent.
- 120V, 60Hz
- Vacuum Gauge and Regulator are not included, but available as optional accessories.
Description:
- Portable dual-channel water-jet aspirator pumps
– Creating a vacuum by means of venturi effect, aspirator pumps are suitable for rotary vacuum evaporation, decompression distillation, vacuum drying, and vacuum filtering. - Built-in circulating pump and water tank make the unit portable.
- Circulating pump continuously pumps water quietly across a set of aspirators, and is therefore clean and efficient.
- Built-in check valve prevents backflow of water into the aspirator pump.
- Corrosion-resistant construction of all wetted parts with 304 stainless steel, polypropylene, silicone, or nickel-coated brass.
- Water tank features a drain port and a spigot for easy changing of water.
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
| SKU # | AAH71016U |
| Weight | 19 lbs |
| Dimensions | 17 × 14 × 25 in |
| Bath volume (L / cu ft) | 9.5 / 0.3 |
| Max. vacuum (Mpa / mmHg) | 0.0906 / 680 |
| Free-air capacity | 18L / minute (0.6 cfm) x 2ea |
| Material (bath / aspirator) | Polypropylene / Nickel-coated brass x 2ea |
| Bath interior (W x L , D) (mm / inch) | 298 x 210, 227 / 11.7 x 8.3 ,8.9 |
| Exterior (W x L x H) (mm / inch) | 330 x 265 x 390 / 13 x 10.4 x 15.4 |
| Inhale nozzle | External Ø9.5 mm (0.4”) x 2ea |
| Drain cook, Over flow nozzle (Ø, mm / inch) | 17 / 0.7 |
| Net weight (kg / lbs) | 5.7 / 12.6 |
| Electrical requirements | 120V, 60Hz / 1.4A |
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
