Julabo Booster Heater
SKU: 9810007.16
Julabo Booster Heater (for MX-BC12, 230V versions of MS-600F, MS-601F, MS-1000F, MS-1000FW)
The Booster Heater offers the option of increasing the heating capacity of some MAGIO laboratory circulators by 6 kW, thereby extending their operative range. The Booster Heater can be used in a temperature range from -50 to 300 °C. Intelligent control in combination with MAGIO ensures that it can be integrated into fully automated systems.

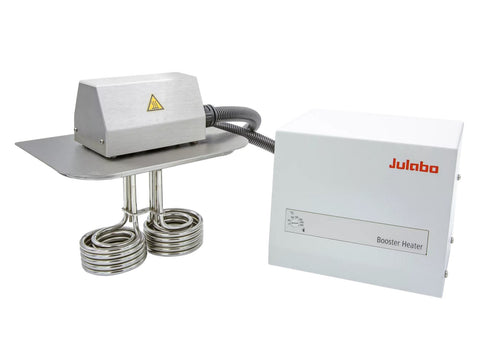

The Booster Heater consists of two components:
- Control unit
- Heater unit with 2 x 3 kW
The heater unit is inserted into the bath opening instead of the bath lid. The control unit can be placed on or next to the circulator.
This accessory is suitable for:
- MAGIO MX-BC12
- MAGIO MS-600F
- MAGIO MS-601F
- MAGIO MS-1000F
- MAGIO MS-1000FW
Technical Data
| Temperature Range | -50-300°C |
| Permissible Bath Fluids | Water, Water-glycol, Silicon Oil |
| Viscosity Max | 70 cSt |
| Main Connection | 400V / 3PNPE / 50Hz or 208-230V / 3PPE / 50/60Hz |
| Weight | 8kg |
MSE Supplies is an authorized distributor of Julabo products.
