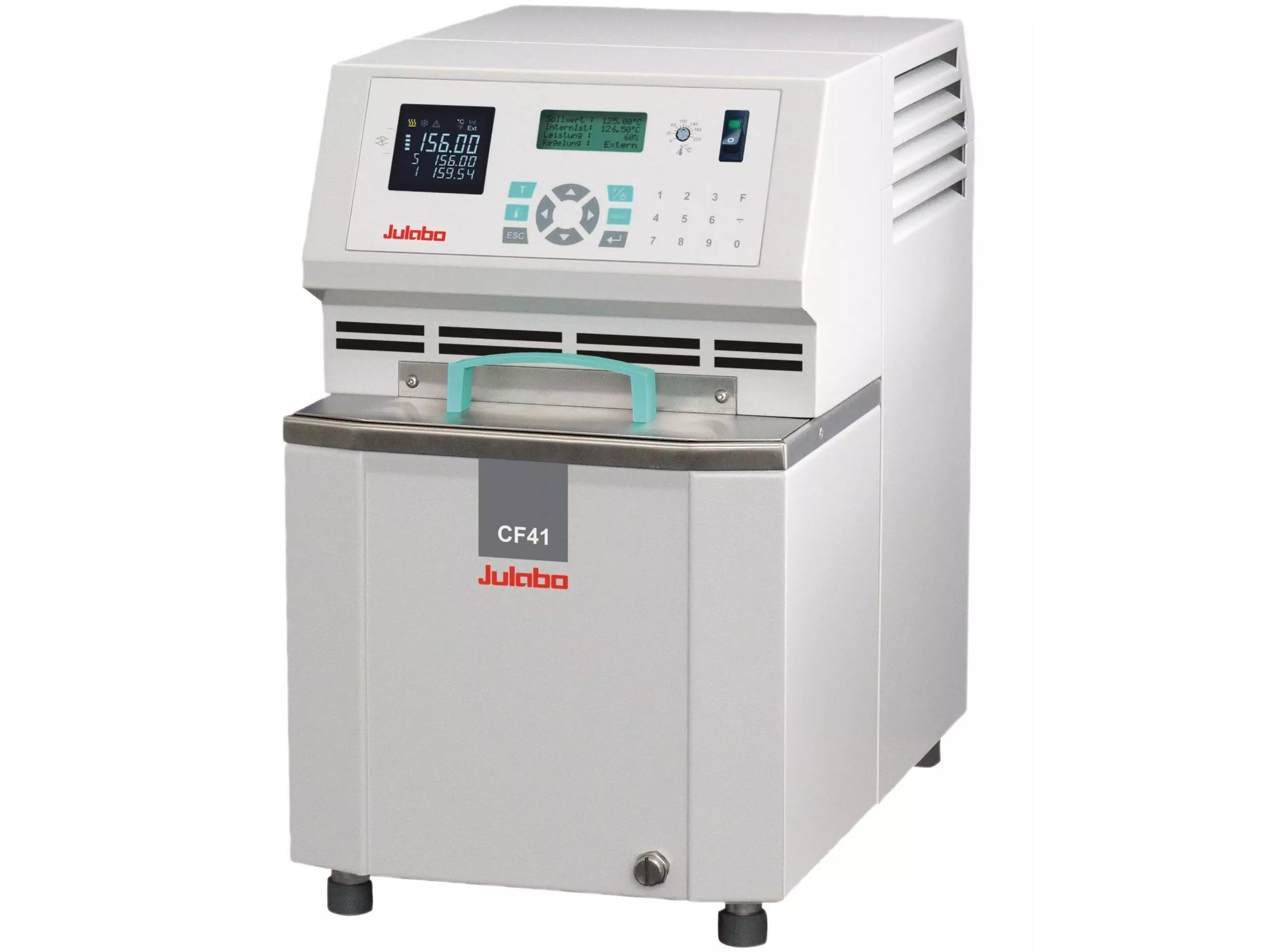

Julabo CF41 Cryo-Compact Refrigerated/Heating Circulators
SKU: 9400341.2
Julabo CF41 Cryo-Compact Refrigerated/Heating Circulators
The Cryo-Compact refrigerated/heating circulators have a very small footprint which is ideal for placing on bench top or in a fume hood with limited space. Models feature M16x1 male pump connections for external temperature applications with 8 and 12 mm hose barbs.
The HighTech CF31/CF41 units have a working temperature range from -30(-40) to +200 °C and include a dual screen display with numeric keypad for easy data entry and instrument reading. RS232 port for external communication and Pt100 sensor connection for external monitoring and control. A 4-speed centrifugal pressure / suction pump provides 22-26 L/min flow with 5.8-10.2 psi pressure / 2.9-5.6 psi suction. Integrated programmer with 6 x 60 program steps.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 female).
Specifications
Part Number |
9400341.13 |
9400341.2 |
9400341.2.CSA/UL |
Voltage Version |
230V/60Hz |
115V/60Hz |
115V/60Hz |
NRTL |
No |
No |
Yes |
Refrigerant |
R449A |
R449A |
R449A |
Heating & Cooling |
Both |
Both |
Both |
Working Temp Range (°C) |
-40 - 200 |
-40 - 200 |
-40 - 200 |
PCF Pressure (psi) |
5.8 - 10.2 |
5.8 - 10.2 |
5.8 - 10.2 |
PCF Rate (l/min) |
22 - 26 |
22 - 26 |
22 - 26 |
