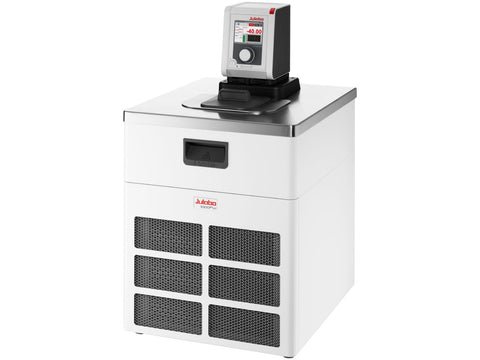

Julabo DYNEO DD-1000FW Water-Cooled Refrigerated/Heating Circulators

SKU: 9021727.02

  • $ 15,23095
  • Save $ 31100



Julabo DYNEO DD-1000FW Water-Cooled Refrigerated/Heating Circulators

DYNEO™ DD-1000FW water-cooled refrigerated/heating circulator with an operating range of -50…+200 °C and ±0.01 °C stability. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB-B connection for external PC control and USB-A for data-logging. Additional communication options include an RS232 port or an analogue module interface, for voltage or current control. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tank (5-7.5L) with integrated drain port. Unit fittings: M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. 1kW cooling power at 20 °C with 110W at -40 °C. Options for heating power (1kW or 2kW). 1000FW: cooling water connections G 3/4″ male; contains R449A synthetic refrigerant.
Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) | G 3/4" female to 1/2" hose barbs for water cooling circuit.



Specifications

Part Number

9021727.02

9021727.02.A

9021727.02.D

9021727.33

9021727.33.A

9021727.33.D

Voltage Version

115V/60Hz

115V/60Hz

115V/60Hz

200-230V/50-60Hz

200-230V/50-60Hz

200-230V/50-60Hz

Refrigerant

R449A

R449A

R449A

R449A

R449A

R449A

Interface

Base

Analog

Digital

Base

Analog

Digital

Heating & Cooling

Both

Both

Both

Both

Both

Both

Working Temp Range (°C)

-50 - 200

-50 - 20

-50 - 20

-50 - 20

-50 - 20

-50 - 20

PCF Pressure (psi)

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

1.5 - 10.2

PCF Rate (l/min)

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27

8 - 27




MSE Supplies is an authorized distributor of Julabo products.
