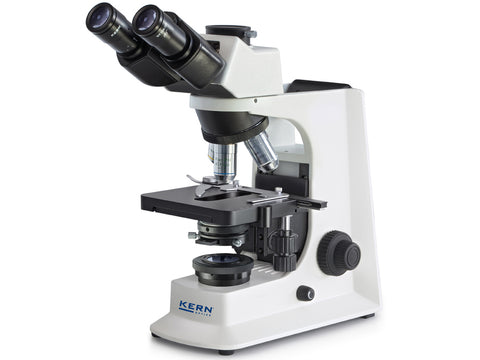

Kern Compound Microscope OBL 137
SKU: OBL 137
Kern Compound Microscope OBL 137
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a Compound Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Compound microscopes are used to view small samples that cannot be identified with the naked eye. These samples are typically placed on a slide under the microscope. When using a stereo microscope, there is more room under the microscope for larger samples such as rocks or flowers and slides are not required.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working
- Strong and continuously dimmable 3W-LED illumination
- The fixed, pre-centred and focusable 1,25 Abbe condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre.
- The large mechanical stage and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
- A large selection of eyepieces, objectives and colour filters as well as a darkfield condenser, a simple polarising unit, different phase contrast kits through to HBO and LED fluorescence units are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- A C-mount adapter is required to connect a camera
- Scope of application: haematology, Urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, Veterinary, water analysis, breweries
Applications
Translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue)
Product Parameters
Optical system |
Infinity |
Tube type | Trinocular |
Ocular magnifications | 10 x |
Ocular visual field | 20 mm |
Nosepiece screw-in locations | 4 |
Illuminance | Transmitted light |
Illumination type transmitted light | LED |
Illumination intensity transmitted light | 3 W |
Focusing mechanism | coaxial coarse and fine drive |
Fine drive minimum | 0,002 mm |
Dimension (W×D×H) | 394×185×377 mm |
Product family | OBL-13 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
