Kern Compound Microscope OBL 156 - MSE Supplies LLC

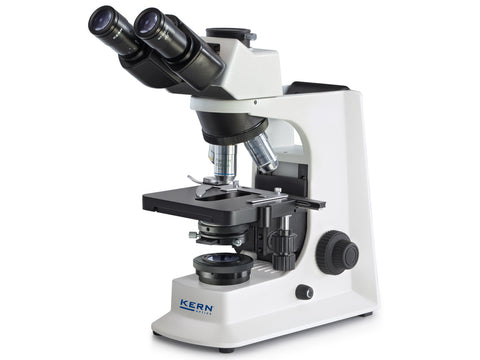

Kern Compound Microscope OBL 156

SKU: OBL 156

  • $ 1,95895
  • Save $ 23600

Kern Compound Microscope OBL 156

Buy Kern products from MSE Supplies at the best value.

MSE Supplies offers a Compound Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

Compound microscopes are used to view small samples that cannot be identified with the naked eye. These samples are typically placed on a slide under the microscope. When using a stereo microscope, there is more room under the microscope for larger samples such as rocks or flowers and slides are not required.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

  • We have developed this series specially for general applications with phase contrast method. In addition, the stable, modular construction system of the OBL series offers many more options.
  • Strong and continuously dimmable 3W-LED illumination

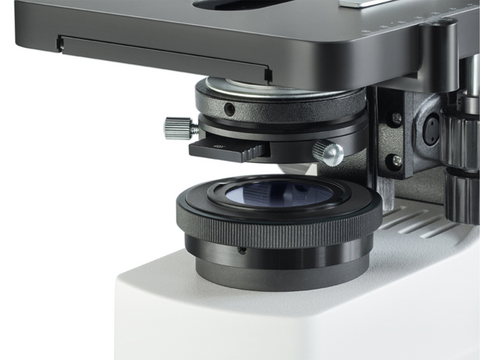

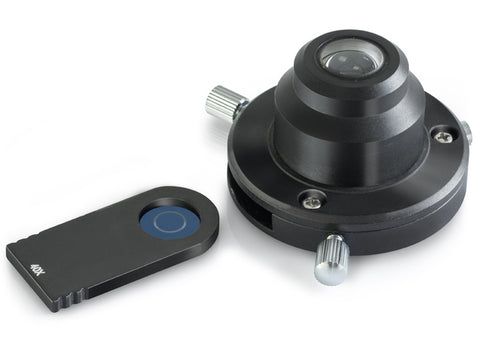

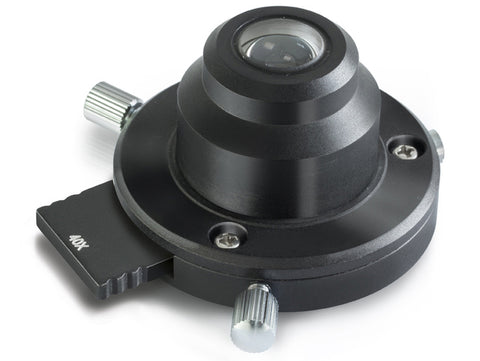

  • A special fixed, pre-centred phase contrast condenser as well as field diaphragm give you a simplified Köhler illumination and thereby a powerful phase-contrast display of your sample
  • The large mechanical stage and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
  • A large selection of eyepieces, objectives and colour filters, a simple polarizing unit as well as further phase contrast units are available to you as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
  • A C-mount adapter is required to connect a camera
  • Scope of application: haematology, Urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, Sewage treatment plants, oncology, entomology, Veterinary, water analysis, breweries

Applications

Specially for extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast

Product Parameters

Optical system Infinity
Tube type Trinocular
Ocular magnifications 10 x
Ocular visual field 20 mm
Standard objectives 4×, 100×, PH 10×, PH 40×
Lens quality Infinity E-Plan / Plan
Nosepiece screw-in locations 4
Illuminance Transmitted light
Illumination type transmitted light LED
Illumination intensity transmitted light 3 W
Focusing mechanism coaxial coarse and fine drive
Fine drive minimum 0,002 mm
Dimension (W×D×H) 394×185×377 mm
Product family OBL-15

About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
