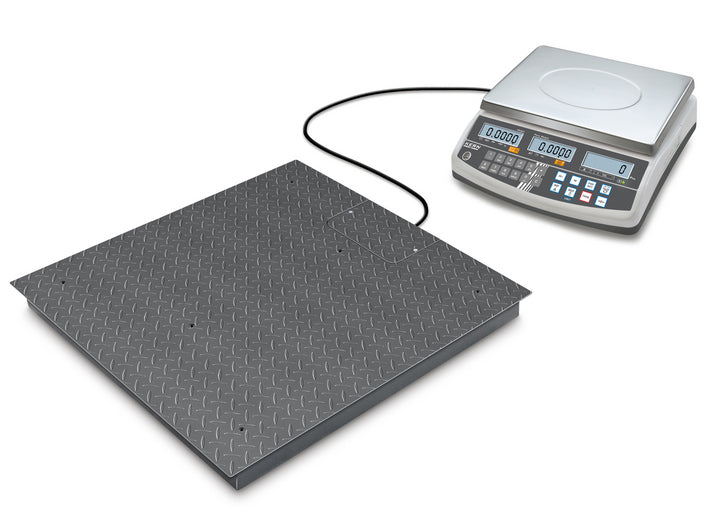

Kern Counting System CCS 1T-1L
SKU: CCS 1T-1L
Kern Counting System CCS 1T-1L
MSE Supplies offers a Counting System from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The highly accurate KERN CCS counting system can replace a whole range of individual balances, efficiently and at a reasonable price
Reference scale KERN CFS 6K0.1
- This professional counting scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
- Programmable using numerical key pad:
- required reference quantity
- known reference weight - Three displays for weight display, reference weight, total pieces
- Memory (PLU) for 100 items with additional text, reference weight and tare weight, e.g. of a container
- Fill-to-target function: Target count or target weight can be programmed. When the target weight is reached there is an audible and visual signal
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
- Protective working cover included with delivery
Quantity scale KERN KFP 1500V20M
- The high-accuracy quantity counting takes place on the weighing bridge. In this way even the smallest of parts can be counted in large volumes
- Weighing plate stainless steel, painted steel base
- Aluminium single point load cell, protection against dust and water splashes IP67.
Product Parameters
| Quantity scale - Weighing capacity [Max] | 1500 kg |
| Reference scale - Readability [d] | 100 mg |
| Units | kg, lb |
| Dimensions weighing platform (W×D×H) | 1500×1250×80 mm |
| Dimensions weighing surface (W×D) | 1500×1250 mm |
| Reproducibility | 0,0002 kg |
| Reference scale - Linearity | 200 mg |
| Quantity scale - Linearity | 0,5 kg |
| Ambient temperature | 0 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 1 g |
| Display type | LCD |
| Display digit height | 20 mm |
| Material weighing plate | coated metal |
| Display device cable length | 5 m |
| Material housing | plastic |
| Net weight approx. | 180 kg |
| IP protection - display | IP23 |
| IP protection - platform | IP65 |
| IP protection - load cell | IP65 |
| Construction type of the scale | Multi-range balance |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
