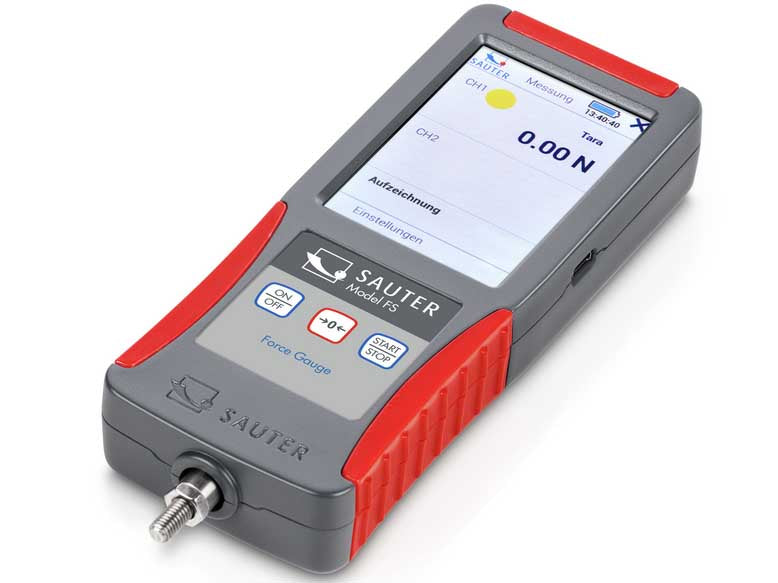

Kern Electrical Force Gauge FS 4-200

Kern Electrical Force Gauge FS 4-200

MSE Supplies offers a Electrical Force Gauge from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

Premium force gauge with integrated load cell and connection possibility for up to 4 external load cells.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

• Use with integrated load cell
  The SAUTER FS premium force gauge has an load measuring cell for tensile and compressive force applications. Either mobile for rapid testing or stationary integrated into a test stand or production line, the multifunction display allows all the values recorded to be read off at a glance in real time. Via the integrated interface, the data can be sent to a PC or laptop for further processing.
• Use with external load cells
  The SAUTER FS premium force gauge is compatible with all SAUTER strain gauge measuring cells, see Measuring Cells. Up to 4 external measuring cells can be connected simultaneously. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected.
• Measurement of forces in different tensile or compression directions possible with only one measuring device

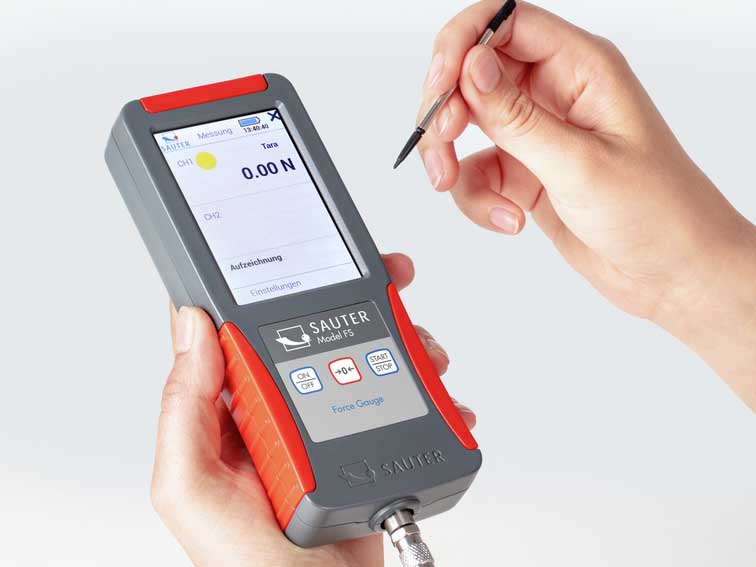

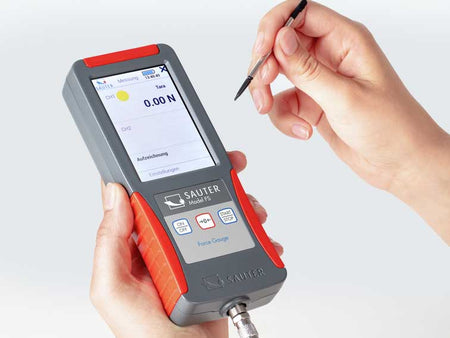

• 3,5" touchscreen

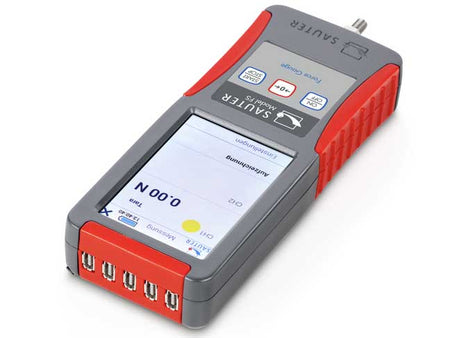

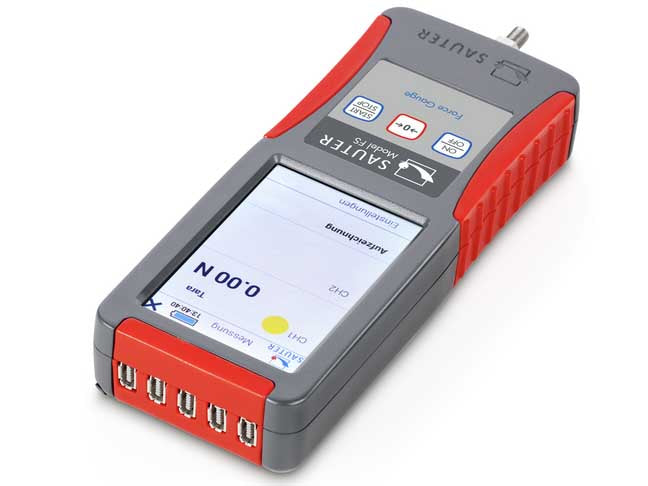

• Standard version with 4 measuring channels for external force sensors
• An internal load cell is possible (is deactivated if an external load cell is connected)
• Suitable for 4-wire and 6-wire sensors with strain gauges
• Two-point adjustment with weights or numerical adjustment possible
• The specific data of an external sensor are stored directly in the connector
• USB interface for data transfer and power supply as standard
• Internal device memory (16 GB)
• Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
• Tolerance function
• Track function for continuous measurement display
• Peak value measurement
• Mountable on all SAUTER test stands

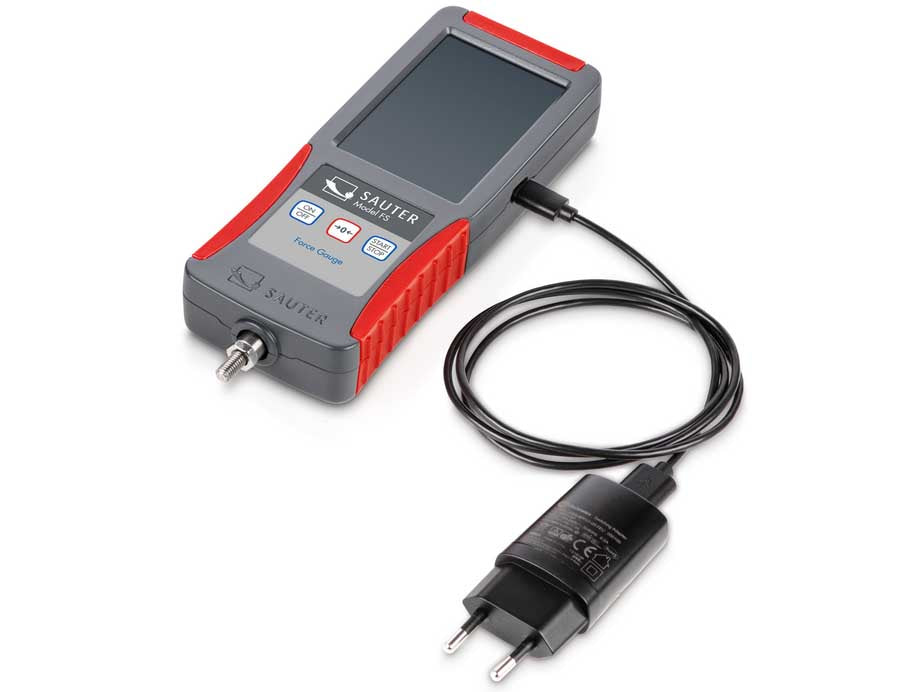

• Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
• Tip: Order the practical system case (systainer® T-LOC) for storing and transporting of accessories, clamps, sensors, etc. at the same time, SAUTER FS TKZ, see accessories.

Product Parameters

About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
