Kern Floor Scale BID 1T-4DSM
SKU: BID 1T-4DSM

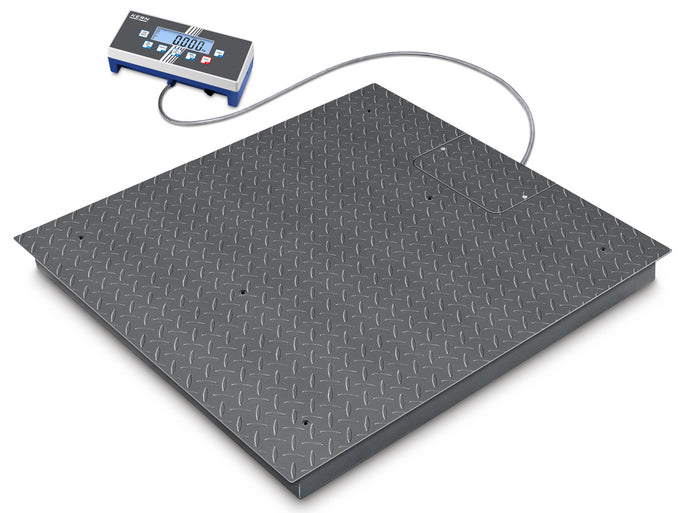

Kern Floor Scale BID 1T-4DSM
MSE Supplies offers a Floor Scale from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Multi-range floor scale with the best price-to-performance ratio, verification optional.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Multi-range balance, with increasing load it switches automatically to the next largest weighing range [Max] and readout [d] and when the load is fully removed, the balance switches back to the lower range
- Display device: Plastics, protection against dust and water splashesIP65. for details see KERN KIB-TM
- Weighing bridge out of anti-slip corrugated steel, 4 load cells, alloy steel, silicone-coated, IP67
- Easy levelling of the weighing bridge as well as access to the junction box from above
- Totalising of weights and piece counts
- Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer
- Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.
Product Parameters
| Weighing capacity [Max] | 600 kg; 1500 kg |
| Readability [d] | 0,2 kg; 0,5 kg |
| Units | kg, g, lb, oz, PCS, tJ, HJ |
| Verification scale interval [e] | 0,2 kg; 0,5 kg |
| Minimum weight [Min] | 4 kg; 10 kg |
| Dimensions weighing platform (W×D×H) | 1000×1000×108 mm |
| Dimensions weighing surface (W×D) | 1000×1000 mm |
| Reproducibility | 0,2 kg; 0,5 kg |
| Linearity | ± 0,6 kg; 1,5 kg |
| Ambient temperature | -10 °C – 40 °C |
| Conformity assessment possible ex works | ü |
| Display type | LCD |
| Display digit height | 25 mm |
| Material weighing plate | steel, powder-coated |
| Material platform | steel, powder-coated |
| Display device cable length | 5 m |
| Net weight approx. | 75 kg |
| IP protection - display | IP65 |
| IP protection - load cell | IP67 |
| Construction type of the scale | Multi-range balance |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
