Kern Force Measuring Device Set FS 2-500OY1
SKU: FS 2-500OY1
Kern Force Measuring Device Set FS 2-500OY1
MSE Supplies offers a Force Measuring Device Set from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

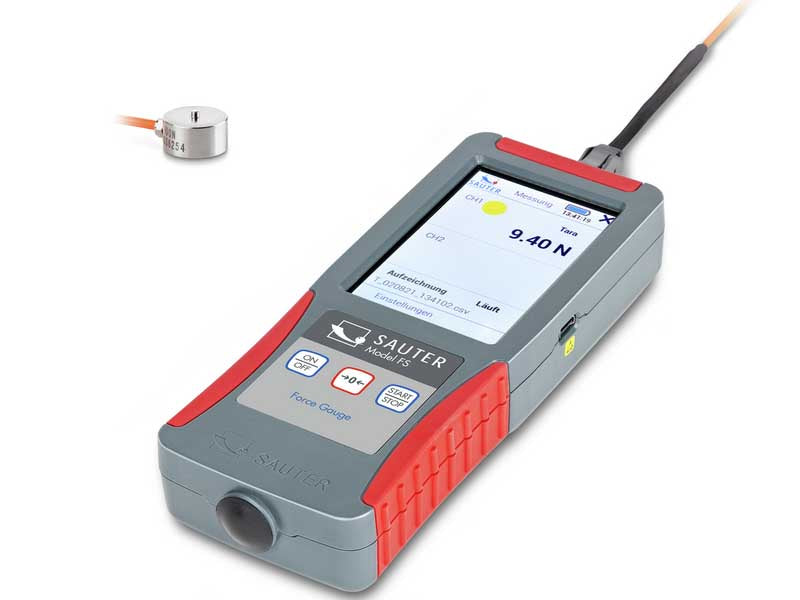

Pre-configured set consisting of the premium force gauge FS 2 and the measuring cell CO 50-Y1.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
Premium force-measuring device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3,5" touchscreen
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Miniature cylindrical load cell made from stainless steel CO 50-Y1
- Accuracy class in accordance with OIML G5
- High precision (comprehensive Error 0,5% F.S.)
- Protection against dust and water splashes IP65
- Area of application: Compressive force measurements.
Product Parameters
| Measuring range force [Max] (N) | 500 N |
| Readability force [d] (N) | 0,1 N |
| Measuring head measuring frequency | 1000 Hz |
| Number of platforms / channels | 2 |
| Supplied power supply | Accu & Power supply |
| Rechargeable battery | 3,7V, 2400mAh |
| Memory function | ü |
| Statistic function | ü |
| Peak function | ü |
| Material housing | plastic |
| Interfaces | USB-Device |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
