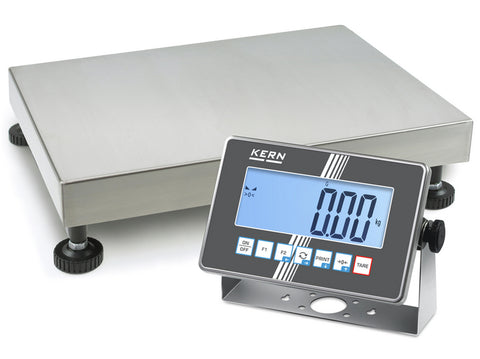

Kern IoT-Line Platform Scale IXC 100K-2LM
SKU: IXC 100K-2LM
Kern IoT-Line Platform Scale IXC 100K-2LM
MSE Supplies offers a Platform Scale from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Convenience for industry: Stainless steel platform scales with up to four interfaces and intuitive operation, with optional verification.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Tough industry standard suitable for use in harsh industrial applications
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
- Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
- Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached
- Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process - Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
- Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Display device: stainless steel, protection against dust and water splashesIP68. Superior display size: digit height 48 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions, integrated power supply.
Product Parameters
| Weighing capacity [Max] | 60 kg; 150 kg |
| Readability [d] | 0,02 kg; 0,05 kg |
| Units | kg |
| Verification scale interval [e] | 0,02 kg; 0,05 kg |
| Minimum weight [Min] | 0,4 kg; 1 kg |
| Dimensions weighing platform (W×D×H) | 650×500×139 mm |
| Dimensions weighing surface (W×D) | 650×500 mm |
| Reproducibility | 0,02 kg; 0,05 kg |
| Linearity | ± 0,02 kg; 0,05 kg |
| Ambient temperature | -10 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 50 g |
| Conformity assessment possible ex works | ü |
| Display type | LCD |
| Display digit height | 48 mm |
| Material weighing plate | stainless steel |
| Material platform | steel, powder-coated |
| Display device cable length | 3 m |
| Net weight approx. | 18 kg |
| IP protection - display | IP68 |
| IP protection - platform | no IP protection |
| IP protection - load cell | IP65 |
| Construction type of the scale | Multi-range balance |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
