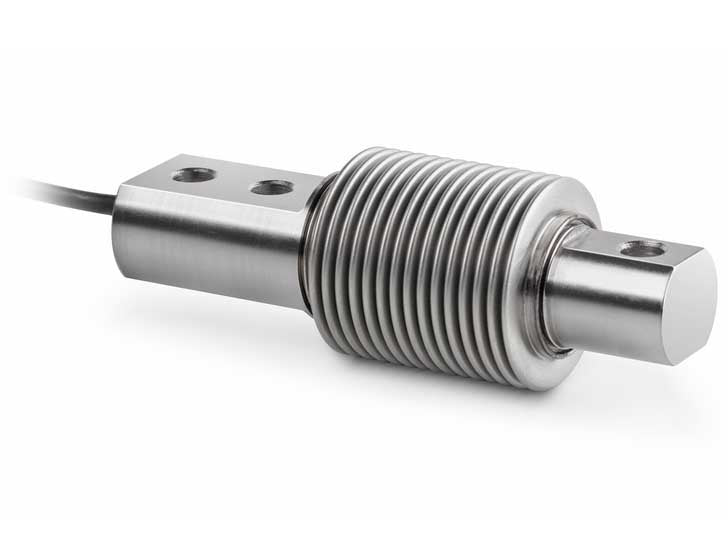

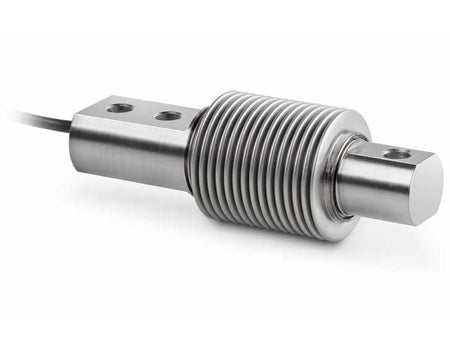

Kern Load Cell CB 5-3Q1
SKU: CB 5-3Q1
Kern Load Cell CB 5-3Q1
MSE Supplies offers a Load Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Bending beam and shear beam load cell made from stainless steel.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- CE and RoHS compliant
- Area of application: Measuring mass as well as compressive force in harsh environments
- Suitable for platform scales, weigh hoppers, floor scales and other weighing devices.
Product Parameters
| Weighing capacity [Max] | 5 kg |
| Design | bending beam |
| Directions of force | compression |
| Measuring applications | mass |
| Load cell - Combined error | 0,017% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68, IP69K |
| Material | stainless steel |
| Load cell connection | 4-wire |
| Cable length | 3 m |
| Mounting - force application | Through-hole Ø 8,2 mm |
| Mounting - force dissipation | 2 × through hole Ø 8,2 mm |
Note
- Accuracy class OIML R60 C6 or EX version on request.
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
