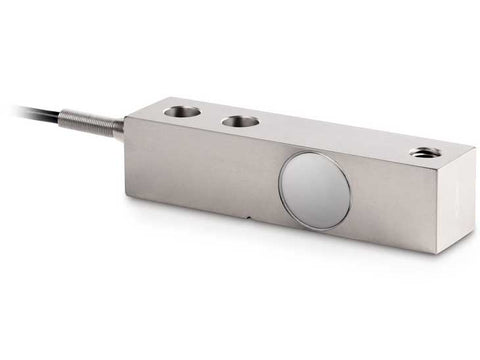

Kern Load Cell CT 3000-3P2
SKU: CT 3000-3P2
Kern Load Cell CT 3000-3P2
MSE Supplies offers a Load Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Shear beam made from stainless steel.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- CE and RoHS compliant
- Area of application: Mass as well as compressive force measurement in harsh environmental conditions
- Suitable for platform scales, weigh hoppers, flush-mounted floor scales and other weighing devices
- Delivery with calibrated sensitivity, when ordering several cells.
Product Parameters
| Weighing capacity [Max] | 3000 kg |
| Design | Shear beam measuring cell |
| Directions of force | compression |
| Measuring applications | mass |
| Load cell - Combined error | 0,023% |
| Load cell OIML class | C3 |
| Load cell - Resolution (verifiable) | 3000 e |
| Load cell - Y-value | 10000 |
| Load cell - characteristic value - nominal | 3 mV/V |
| IP protection - complete device | IP67 |
| Material | steel, nickel-plated |
| Load cell connection | 4-wire |
| Cable length | 6 m |

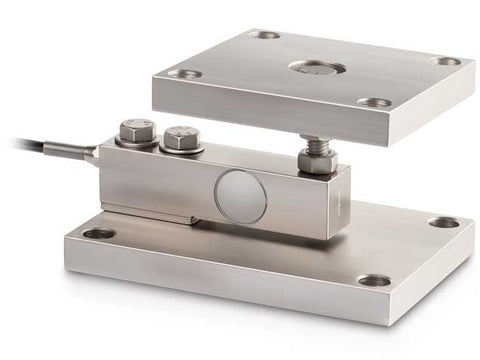

| Mounting - force application | Threaded hole M18 × 1,5 |
| Mounting - force dissipation | 2 × through hole Ø 19,8 mm |
Note
- EX version, 6-wire connection and accuracy class C4 or C5 on request.
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
