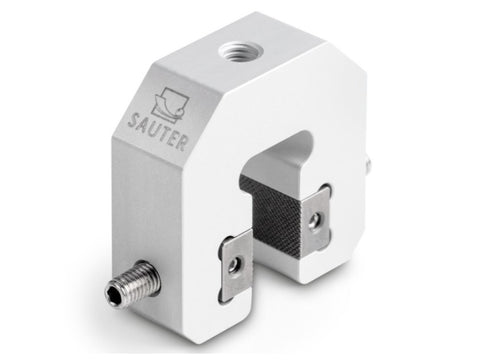

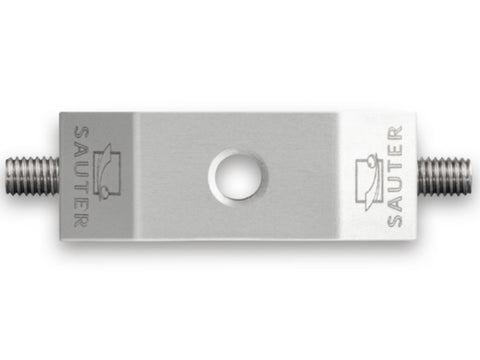

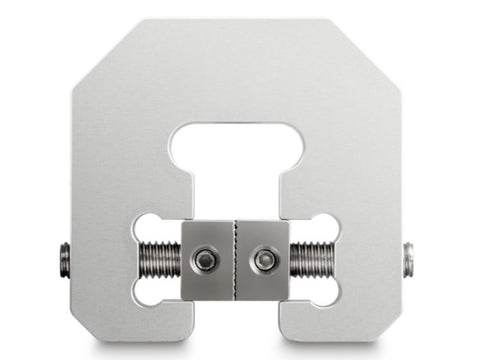

Kern Screw Tension Clamp with Claws (Up to 500N)

SKU: AE 500

  • $ 21495
  • Save $ 2400



Kern Screw Tension Clamp with Claws (Up to 500N)

Buy Kern products from MSE Supplies at the best value.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Description

  • Quickly fittable universal screw tension clamp for tension and compression testing for a force range up to 500 N
  • High-quality screw tension clamp in the lower force range with an enormous flexibility for a fast adaptation to a wide variety of test objects
  • Solid version for high clamp forces
  • Flexible clamping width (width between the jaws) from 0 – 10 mm
  • Jaws with pyramid grip as standard, W×H 15×10 mm
  • The modular construction enables a quick adaptation and cleaning of the clamp
  • The threaded rods with hexagon socket allow the test objects to be securely clamped with standard tools and thus adapted to the user's own requirements and operating conditions, e.g. use with a test stand or measuring device, etc.
  • Can be used with all SAUTER force measuring devices or test stand systems
  • To fix the clamp on a force gauge, there is a M6 thread on the upper side of the clamp
  • Scope of supply: 1 clamp with 2 jaws with pyramid-shaped grip


Technical Data

Tensile/compressive force [Max] 500 N
Maximum clamp width 15 mm
Clamping width 10 mm
Material aluminium
Net weight approx. 0.10 kg
Mounting - force dissipation Threaded hole M6
Dimensions completely mounted (W×D×H) 51×41×15 mm
Product family AE



For accessories, please contact us so we can help you choose appropriate products for your needs.



    About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

    MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
