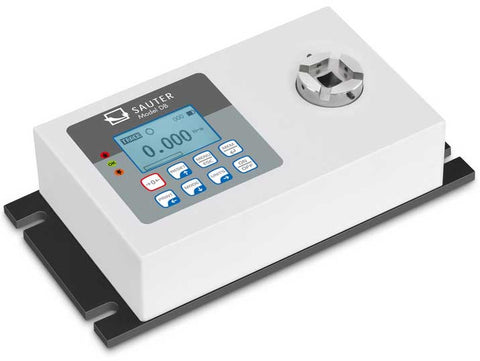

Kern Torque Gauge DB 20-3
SKU: DB 20-3
Kern Torque Gauge DB 20-3
MSE Supplies offers a Torque Gauge from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Convenient way to test the torque of tools.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features

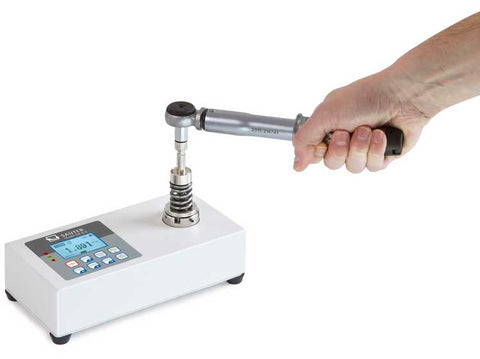

- Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

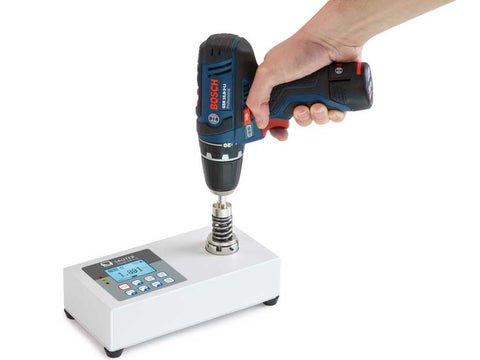

- Torque pick-up system for dynamic testing of electric screwdrivers
- Metal housing for durable use in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available

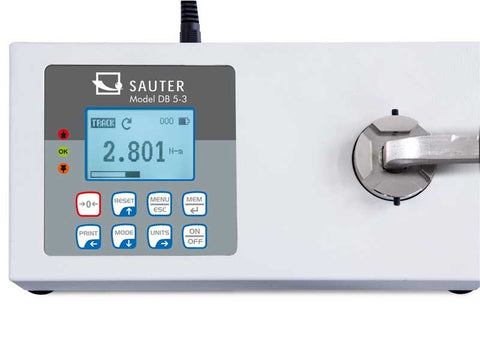

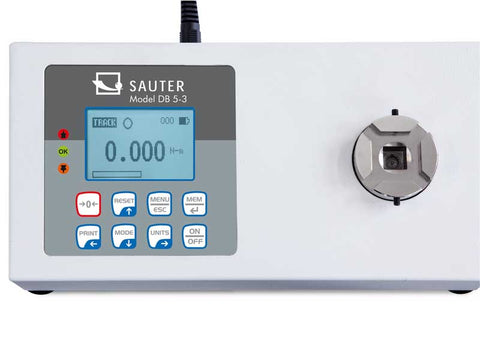

- LCD graphics display with backlight
- Stable mounting plate for solid fixation
- Data interface USB and RS-232 included
- Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- AUTO-OFF function

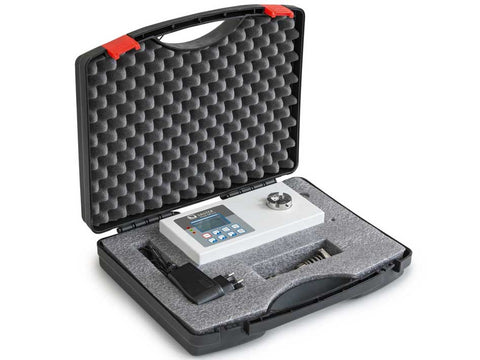

- Scope of delivery: Torque pick-up, sturdy carry case, mounting plate.
Product Parameters
| Measuring range torque | 1 Nm – 20 Nm |
| Readability torque [d] (Nm) | 0,005 Nm |
| Tolerance (% of [Max]) | 0,5% |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Supported torque pickups | 20 mm, 3/8 " |
| Overload protection (% of [Max]) | 120% |
| Memory function | ü |
| Internal data memory: Number of individual values | 500 |
| Peak function | ü |
| Limit-setting function | ü |
| Internal measuring frequency | 1000 Hz |
| Supplied power supply | Accu & Power supply |
| Battery / accumulator type | NiMH |
| Rechargeable battery operating time - backlight off | 18 h |
| Auto-off interval(s) in battery mode/rechargeable battery mode | 1 - 60 min |
| Interfaces | RS-232 standard, USB-Device |
| Display type | LCD graphic |
| Display resolution | 128×64 |
| Material housing | metal, lacquered |
| Dimension (W×D×H) | 22×11×51 cm |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
