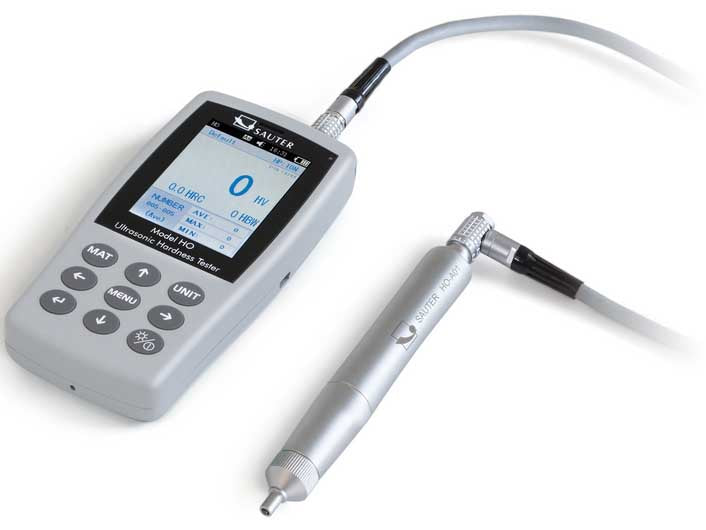

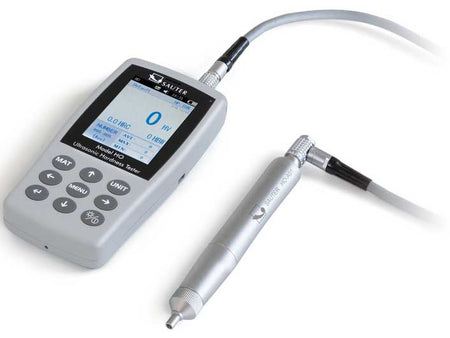

Kern UCI Hardness Tester HO 2K
SKU: HO 2K
Kern UCI Hardness Tester HO 2K
MSE Supplies offers a UCI Hardness Tester from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Premium UCI hardness testing device for Rockwell, Brinell and Vickers.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Application: This ultrasound hardness testing device is ideally suited for mobile hardness testing, where the main emphasis is on obtaining rapid and precise results
- Principle: The SAUTER HO measures by using a vibrating rod which vibrates at ultrasonic frequency and is pressed onto the sample at a defined test force. At the lower end there is a Vickers indenter. Its resonant frequency increases, as soon as an indentation is created when it comes into contact with the sample. Through appropriate adjustment of the device, the resulting change in resonant frequency is matched with the corresponding Vickers hardness
- Examples: The SAUTER HO ultrasound hardness testing system is primarily used for measuring small forgings, castings, welding points, punched parts, casting tools, ball bearings and the flanks of gear wheels as well as for measuring the influence of warmth or heat
- Advantages compared with Rockwell and Brinell: Almost non-destructive testing by smaller test force and thus only microscopic indentation craters
- Advantages compared with Vickers: Demanding optical measuring is not required. You can therefore carry out measurements directly on-site, for example, on a permanently installed workpiece
- Advantages compared with Leeb: The high requirements concerning the proper weight of the test object can be widely omitted
- Standards: The device meets following technical standards: DIN 50159-1; ASTM-A1038-2005; JB/T9377-2013
- Measurement data memory saves up to 1000 measurement groups each with 20 individual values
- Mini statistics function: Display of the measuring result, the number of measurements, the maximum and minimum value as well as the average value and the standard deviation
- Calibration: The device can be set to both standard hardness test blocks as well as to up to 20 reference calibration values. When doing this it is possible to measure different materials quickly, without having to re-adjust the device to the individual materials

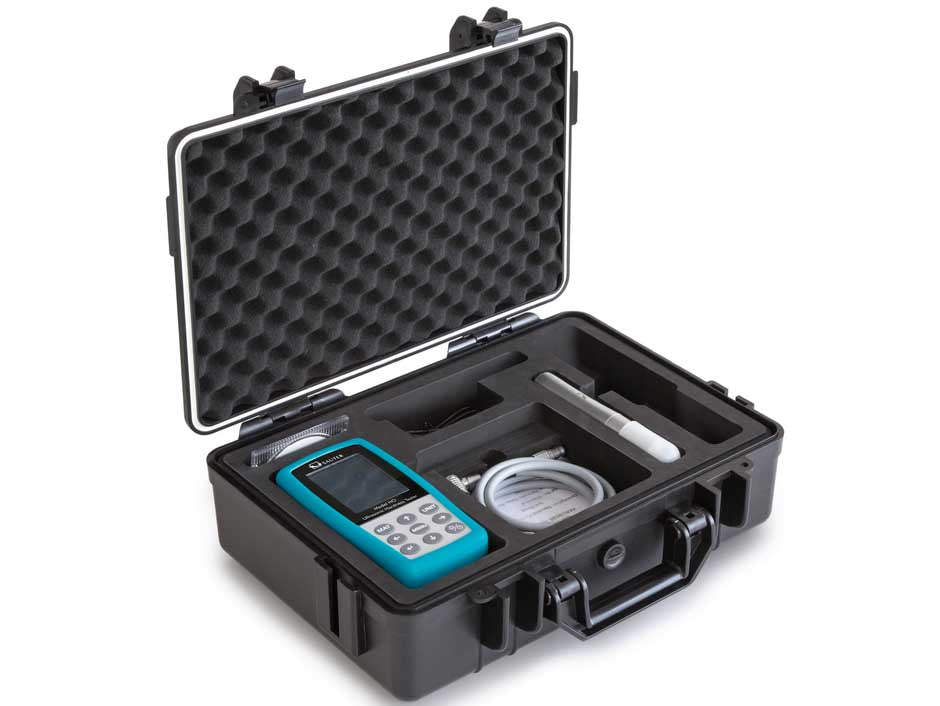

- Scope of delivery: Standard block for calibration (approx. 61 HRC), USB cable, display unit, UCI sensor unit, transport case, software to transfer the saved data to the PC, protective case (turquoise), further accessories.
Product Parameters
| Test force Hardness measurement | 20 N |
| Type of drive | manual |
| Units | HL, HV, HB, HRB, HRC, MPa, HRA |
| Measuring range Rockwell - scale A | 61-85,6HRA |
| Measuring range Rockwell - scale B | 41-100HRB |
| Measuring range Rockwell - scale C | 20,3-68HRC |
| Measuring range Brinell | 79-618HB |
| Measuring range tensile strength | 255-2180MPa |
| Test object thickness [Min] | 2 mm |
| Test object minimum weight [Min] | 300 g |
| Memory function | ü |
| Limit-setting function | ü |
| Statistic function | ü |
| Supplied power supply | Accu & Power supply |
| Interfaces | USB-Device |
| Material housing | metal, lacquered |
| Measuring probe length | 15,5 cm |
| Measuring probe diameter | 18 mm |
| Test block inclusive | ü |
| Product family | HO |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
